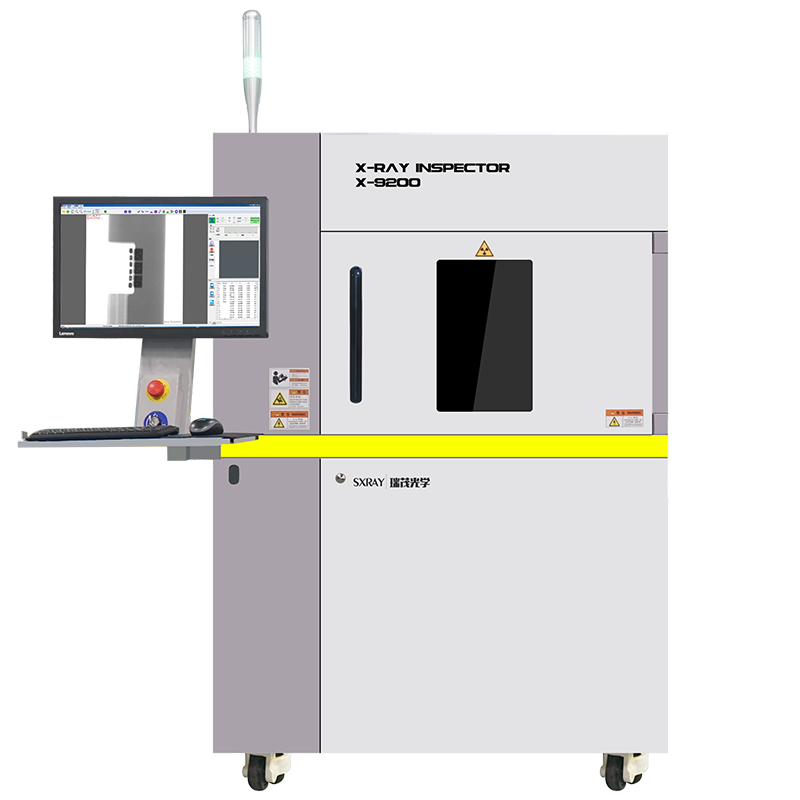

Large X-RAY equipment_X-9200 Inspection System
The X-9200 X-ray Inspection System is designed for customers requiring inspection of larger samples with stable imaging performance and a larger working stage. It is well suited for universities, research institutes, compound semiconductor fabs, and advanced materials users who need reliable X-ray analysis for large-format samples, research evaluation, and failure analysis.
Key Features
- Large 1700 × 1000 mm stage for oversized sample inspection
- Closed X-ray tube design with 110 kV standard voltage
- 5 μm spatial resolution for detailed internal structure analysis
- 250X geometric magnification and 1500X system magnification
- 1300 × 1100 digital flat panel detector with 14-bit imaging
Strong Selling Points
- Designed for Large Samples
The X-9200 is built with a large-size stage that can accommodate a variety of larger samples for X-ray inspection, making it suitable for labs and customers working with oversized components or assemblies. - Stable Imaging for Research and Inspection
With 5 μm spatial resolution, 30 FPS image speed, and digital flat panel imaging, the system supports stable and efficient defect analysis and structure evaluation. - Flexible for Advanced Materials and Semiconductor Research
The X-9200 fits universities, institutes, and advanced material fabs that need larger inspection capacity without moving to a more complex industrial CT platform. - Large Working Area with Broad Motion Range
The 1700 × 1000 mm stage and 1700 × 700 mm X-Y stroke provide strong flexibility for different sample sizes and inspection tasks. - Balanced Capability for Specialized Applications
This model is especially attractive for users who need larger sample handling, strong imaging performance, and a cost-effective solution for research and specialized inspection work.
Applications
- Large-sample internal defect inspection
- LED hard light bar testing
- Advanced materials and component analysis
- Semiconductor and compound material research
- Laboratory evaluation and failure analysis
Positioning
The X-9200 is a large-stage X-ray inspection system designed for research-focused and specialized users who need to inspect larger samples while maintaining stable image quality, practical magnification, and efficient operation.
Specifications
| Category | Item | Specification |
| X-ray Source | Model | X-9200 |
| Tube Type | Closed | |
| Tube Voltage | 110 kV (optional 100 / 90 kV) | |
| Tube Current | 800 μA | |
| Imaging | Spatial Resolution | 5 μm |
| Geometric Magnification | 250X | |
| System Magnification | 1500X | |
| Image Speed | 30 FPS | |
| Support Rotation Angle | 360° | |
| Detector | Detector Type | Digital flat panel detector |
| Detector Resolution | 1300 × 1100 px | |
| Density Value | 14 bit (16348) | |
| Stage / Inspection | Stage Size | 1700 × 1000 mm |
| X-Y Stroke | 1700 × 700 mm | |
| Examination Range | 1180 × 580 mm | |
| Scope of Application | Large samples for testing | |
| System | Machine Size | 1250 × 1740 × 1750 mm (L × W × H) |
| Machine Weight | 1400 kg | |
| Operating System | Windows 7 / Windows 10 | |
| Power Supply | AC110–220V, 50–60Hz | |
| Power | 1200W | |
| Radiation Safety Test | < 1 μSv/h |
* Specifications are for reference only and may vary depending on configuration. Please contact SemiStar or the manufacturer for official specifications.
