SVG 90S 2C2D ~8″

Description

Please contact us for the availability of the Spin Developer & Coater SVG 90S (ID: SS9892). The items are subject to prior sale without notice. The items are only for end users.

Location: Wuxi Jiangsu, China

Condition: (1) AS IS,WHERE IS; (2) Refurbished with installation and warranty.

Photos: Download

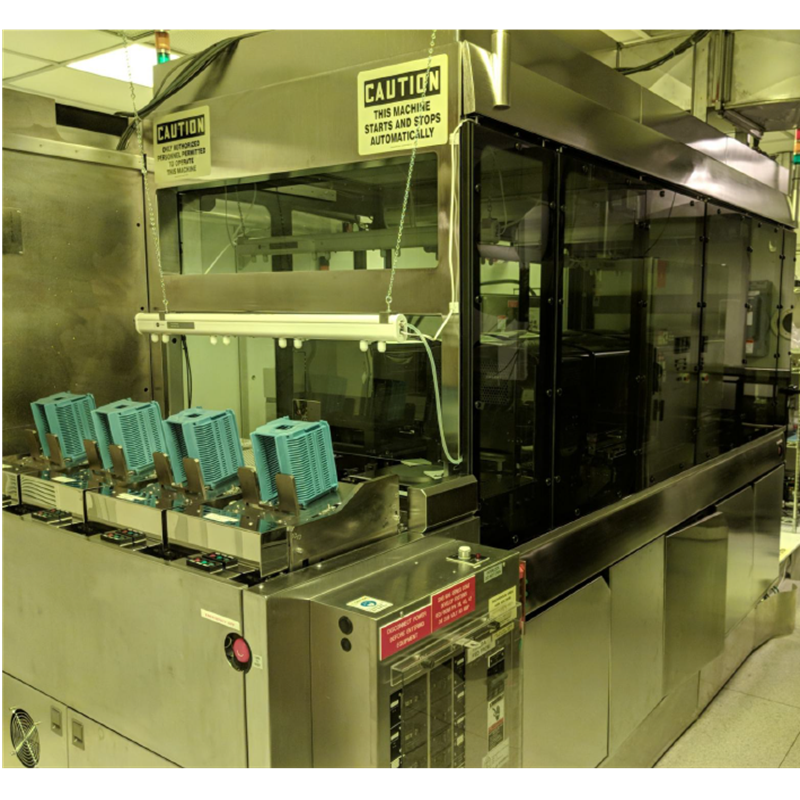

SVG 90S configuration shown

Item Configuration
Hot plates 7
Chill plates 5
Natural cooling station 1
Waiting cooling station 1
COAT modules 2 chambers
Coat dispense Each chamber has 2 resist lines, using CYBOR 5116CE pumps
DEV modules 2 chambers
Developer dispense Each chamber: 6 developer spray nozzles + 2 DI-water spray lines
WEE 1 set, USHIO PE-250U3SV2
Standard INDEX 4 positions
Coat send/receive 1 position each
DEV send/receive 1 position each
Main handling Main ARM plus module-level arms
Computer AT-compatible 486 DX/33 MHz PC
Storage 40 MB HDD, DOS + SVG software

The trademarks of the equipment and parts contained on this page belong to the Original Equipment Manufacturers.

Please contact us for more information on the product:

Your Name*:

Your Email:

Your Message:

Captchac Codecaptcha

Submit:

140-MSP-225

200mm RITE TRACK 90-S Coater / Developer Track System

SemiStar Corp. is working directly with an end user offering a 200mm RITE TRACK 90-S Coater / Developer Track System for sale.

The system was purchased new in 2021 and placed into operation in 2022. The current owner no longer requires the equipment for its existing projects and is making it available to free up cleanroom space.

According to the seller, the system is currently installed, idle, and has no known operational issues.

System Overview

Item Description
Manufacturer RITE TRACK
Model 90-S
Wafer Size 200mm (8-inch)
Wafer Types Silicon and glass
Purchased New 2021
In Service Since 2022
Current Condition Installed and idle; no known issues reported
Coater Modules 3
Developer Modules 1
HMDS Vapor Prime Modules 1
Vacuum Bake Modules 6
Chill Plate Modules 3
Serial Transfer Arms 4 × 9002TA
Wafer Handling Automated shuttle and transfer arms
Cassette End Station 9068CES
Fluid Temperature Controller 9064FTC
Communication SECS hardware/software option
Certification CE marking

1. System Configuration

The RITE TRACK 90-S is configured for automated 200mm silicon and glass wafer processing.

Main configuration includes:

  • 3 Coater modules
  • 1 Developer module
  • 1 HMDS Vapor Prime module
  • 6 Vacuum Bake modules
  • 3 Chill Plate modules
  • 4 Serial Transfer Arms (9002TA)
  • Z-axis shuttle and transfer arm
  • Stainless steel-paneled cabinet
  • Upper enclosure with Fan Filter Units (FFUs)
  • SECS hardware/software option
  • CE marking

2. Cassette End Station – 9068CES

  • Integrated control module
  • 4 cassette positions: 1 × 100mm and 3 × 200mm
  • Stacked 3-pin transfer stage and chill plate/centering stage
  • USB drive replacing the original floppy drive
  • Flash drive replacing the original hard drive
  • Ergonomic 900mm cassette height
  • Cassette mapping and cross-slotted wafer detection
  • Send, Receive, and SendCeiver capability for stationary cassettes
  • Spin motor controller packaging
  • System power distribution and circuit breaker box
  • Main system Emergency Machine Off (EMO)
  • LCD flat-panel display
  • Operator membrane keypad and pull-down keyboard
  • Industrial Pentium PC AT
  • 3-color status tower light
  • Audible alarm

3. Coater Modules – 9026COAT (Qty. 3)

Each coater includes three dispense nozzles.

Chemical Dispense System

  • 9 TalonTech TP-12 pumps, supporting viscosities up to 800 cP (3 per coater)
  • 9 × 0.1µm resist filters
  • Programmable radial dispense arm with removable nozzle block
  • Pressurized solvent delivery system
  • Dispense nozzle solvent vapor bath
  • Independent topside Edge Bead Removal (EBR) dispense arm
  • Backside EBR dispense
  • In-line flow meters for topside EBR, backside EBR, and solvent vapor bath
  • Teflon-lined, braided stainless steel solvent plumbing

Spin and Wafer Handling

  • High-performance, high-acceleration spin motor
  • Iris wafer-centering mechanism
  • Low-contact Kel-F vacuum chuck
  • Spin motor/vacuum chuck temperature isolation and cooling

Chamber and Safety Features

  • Teflon/stainless steel catch cup with splash shields
  • Separate drain and exhaust paths
  • Pump-out drain to customer connection
  • Rear exhaust connections
  • Programmable exhaust flow controller
  • Safety process cover with interlock

4. Developer Module – 9032DEV (Qty. 1)

Developer and DI Water Dispense

  • Dual-stream developer/DI water dispense nozzle assembly
  • Programmable movable dispense arm
  • High-flow, low-impact pressurized developer dispense
  • Spray and stream DI water rinse nozzles
  • Backside DI water rinse
  • Temperature-controlled developer and DI water dispensing
  • Non-metallic fluid paths, except stainless steel spray nozzles
  • Teflon/PVDF flow meters and plumbing
  • Programmable dispense nozzle-to-wafer height
  • Off-wafer nozzle standby area inside the cup
  • DI water idle dispense capability

Spin and Chamber Features

  • High-performance, standard-acceleration spin motor
  • Spin motor oscillation capability
  • Iris wafer-centering mechanism
  • Independent module and chuck leveling
  • Polyethylene catch cup
  • Polypropylene direct drain
  • Rear drain and exhaust connections
  • Programmable exhaust flow controller
  • Safety process cover with interlock

5. HMDS Vapor Prime – 9038VP-S (Qty. 1)

  • Fixed-pin, proximity-type HMDS vapor prime module
  • Air venturi chamber vacuum
  • Stacked, pull-out module design
  • Operating temperature: 80–200°C
  • PID-controlled hotplate
  • Teflon-impregnated, hard-anodized chuck surface
  • Air-cylinder-driven wafer pin lift
  • Nitrogen bubbler dispensing system
  • Uniform HMDS/N₂ dispensing
  • Programmable process sequences
  • SEMI S2-93-compliant secondary exhaust enclosure
  • Over-temperature protection
  • Process cover safety interlock
  • Isolated plumbing and electronics
  • Teflon-lined, braided stainless steel dispense/exhaust plumbing
  • Point-of-use 0.05µm gas filtration
  • Individual pressure and flow control
  • Vacuum chamber pressure interlock and display
  • Integrated heater element and chuck

6. Vacuum Bake Modules – 9036VB-S / 9036VB (Qty. 6)

Module Configuration

  • 5 × 9036VB-S vacuum bake modules with fixed pins and proximity heating
  • 1 × 9036VB vacuum bake module with programmable pin lift
  • 4 air venturis for chamber vacuum

Features

  • Operating temperature: 80–250°C
  • Stacked, pull-out module design
  • Teflon-impregnated, hard-anodized chuck surface
  • Air-cylinder-driven wafer pin lift assembly
  • Continuous hotplate exhaust with lid assembly
  • Process cover safety interlock
  • Over-temperature protection
  • Point-of-use 0.05µm gas filtration
  • Independent pressure and flow control for nitrogen process/purge dispensing
  • Dehydration and vacuum bake capability
  • Vacuum chamber pressure interlock and display
  • Integrated heater element and chuck

7. Chill Plate Modules – 9044CP-S / 9044CP (Qty. 3)

Module Configuration

  • 2 × 9044CP-S chill plate modules
  • 1 × 9044CP chill plate module

Features

  • Fixed-pin, proximity-type design
  • Stacked, pull-out module configuration
  • Water-cooled chill plates
  • Temperature monitoring
  • Teflon-impregnated, hard-anodized chuck surface
  • Air-cylinder-driven wafer pin lift assembly

8. Serial Transfer Arms – 9002TA (Qty. 4)

  • Servo motor-controlled wafer transfer arms with encoders
  • Teflon-coated ceramic wafer-contact surfaces
  • Protective transfer arm covers
  • Keyboard calibration
  • Arm safety overdrive protection
  • Z-axis motion capability

9. Z Shuttle / Transfer Arm

  • Automated wafer transfer between stacked modules
  • High-speed, high-acceleration transfer
  • Servo motor-controlled drive assembly with encoder
  • Automatic shuttle home-position calibration
  • Shuttle and arm safety overdrive protection

10. Fluid Temperature Controller – 9064FTC

Configuration: Remote 4-bath temperature controller.

  • Four independently temperature-controlled water baths
  • Supports high-flow and remote-location applications
  • Programming and display through system supervisor via RS422
  • CFC-free thermoelectric cooling
  • Local status and temperature display
  • Stainless steel panels on modular steel frame
  • Enclosed, exhausted cabinet
  • GFI circuit breakers

11. Remote Chemical Cabinet

Solvent Supply

  • 3 × 5-gallon solvent canisters
  • Manual filling
  • Low-level and nitrogen pressure alarms

Developer Supply

  • 2 × 5-gallon developer canisters
  • Manual filling
  • Low-level and nitrogen pressure alarms

HMDS Supply

  • 1 × 1-gallon HMDS canister
  • Manual filling
  • Low-level sensor and nitrogen pressure alarm

Photoresist Supply

  • 9 × 4-liter resist bottle storage positions
  • L/E assemblies and low-level alarms

12. Main System Cabinet

  • Rigid steel frame with electropolished stainless steel doors
  • Mirror-finish stainless steel process covers and deck shields
  • Rigid casting braces for module placement and support
  • Large casters and topside footpad leveling
  • Separate electrical and pneumatic raceways
  • Removable doors and panels for maintenance access
  • Aerodynamic flow-through cabinet design
  • Drip trays beneath pumps, solenoid valves, and filters
  • Slide-out drawer for coater/developer gauges and flow meters
  • Independent exhaust for coater and developer modules
  • Air purge for all brush motors
  • Facility interlock sensors and gauges
  • Multiple system cabinet EMOs

Equipment Availability

This 200mm RITE TRACK 90-S Coater / Developer Track System is being offered directly from its current end-user installation.

The equipment was purchased new in 2021, entered service in 2022, and is currently installed but idle. The seller reports no known operational issues.

Equipment condition and configuration are based on information provided by the current owner and are subject to verification.

Interested buyers may contact SemiStar Corp. for additional information, equipment photos, pricing, and availability.

Subject to prior sale.

SS7464-20261118FOX-APM420
