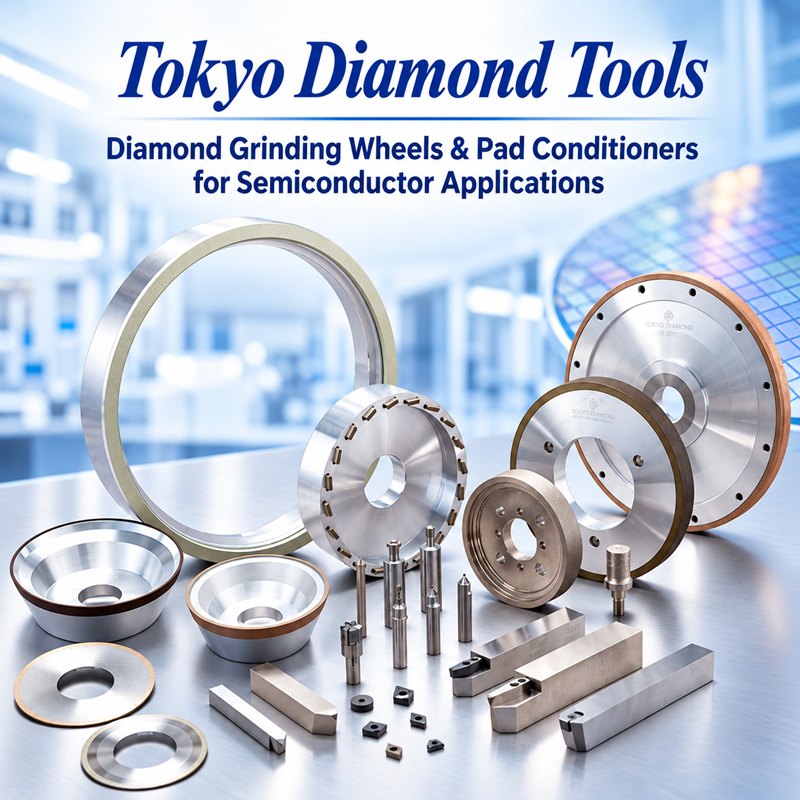

Tokyo Diamond Tools – Diamond Grinding Wheels & Pad Dressers for Semiconductor Applications

SemiStar offers Tokyo Diamond Tools precision diamond tooling for semiconductor wafer processing and semiconductor production equipment applications in the U.S. and Canada.

Tokyo Diamond Tools has been developing and manufacturing diamond and CBN tools since 1932. Many products are customized according to the customer’s material, equipment, process, drawings and application requirements.

1. Wafer Grinding & Back-Grinding Wheels

Diamond grinding wheels for surface grinding and back-grinding of semiconductor wafers, including applications for hard and brittle semiconductor materials.

  • SiC and other compound semiconductor wafers
  • Rough grinding wheels
  • Finish grinding wheels
  • Customized wheel specifications for the customer’s wafer, equipment and process
  • Alternative solutions for existing or originally supplied grinding wheels

Technical Information – Wafer Grinding / Back-Grinding Wheels (PDF)

2. Wafer Edge Grinding & Notch Grinding Wheels

Precision diamond wheels for wafer edge grinding, beveling and notch grinding. Applications include semiconductor and compound semiconductor wafer processing.

  • Silicon (Si)
  • Silicon Carbide (SiC)
  • Sapphire
  • GaN
  • Edge grinding / beveling
  • Notch grinding
  • Customized wheel design for specific wafer and process requirements

Technical Information – Edge & Notch Grinding Wheels (PDF)

3. Pad Dressers for Lapping Applications

Tokyo Diamond Tools provides electroplated diamond pad dressers for conditioning lapping pads used in semiconductor wafer processing applications.

  • For pad dressing in lapping processes
  • Electroplated diamond construction
  • Different diamond grain sizes and grain shapes available
  • Customizable diamond patterns
  • Selection according to pad type and application requirements
  • Customized solutions based on the customer’s existing process and requirements

Tokyo Diamond Tools can optimize the abrasive grain, diamond shape, plating and dresser pattern according to the specific lapping application.

Technical Information – Pad Dressers for Lapping Applications (PDF)

4. Diamond Tools for Quartz, Ceramics & SiC Components

Customized diamond grinding tools are available for machining hard and brittle materials used in semiconductor production equipment and related components.

  • Quartz glass
  • Ceramics
  • SiC
  • Glass and other hard/brittle materials
  • Pocket machining
  • Helical machining
  • Edge, internal and external grinding
  • Custom tools based on component geometry and machining requirements

Product Catalog – Semiconductor Production Equipment Applications (PDF)

Technical Information – Semiconductor Equipment Parts Processing (PDF)

5. DEXmill Diamond Tools

DEXmill diamond tooling is available for precision machining applications. Please provide the workpiece material, drawing, machining equipment and process requirements so that the appropriate tool can be reviewed.

DEXmill Product Information (PDF)

Custom & Replacement Applications

Most Tokyo Diamond semiconductor tools are application-specific rather than simple off-the-shelf replacement parts. Customers may contact SemiStar when:

  • Looking for an alternative to an existing grinding wheel or pad dresser
  • Looking for an alternative to a consumable originally supplied with equipment
  • Experiencing wheel life, surface finish, chipping, cracking, dressing performance or other process issues
  • Looking for improved performance, price or lead time
  • Developing a new wafer, material, grinding, lapping or machining process

Information for an Inquiry

For an inquiry, please provide as much information as available, including:

  • Current grinding wheel, dresser or tool information
  • Equipment manufacturer and model
  • Wafer or workpiece material
  • Wafer/workpiece size and dimensions
  • Current tool specifications, if available
  • Drawings and photos, if available
  • Current process conditions
  • Current problem or desired improvement

Applications are reviewed case by case. SemiStar will work with Tokyo Diamond Tools to evaluate the customer’s application and requirements and propose a suitable solution.

Technical Documents

Contact SemiStar

If you are currently using a diamond grinding wheel, wafer edge/notch wheel, lapping pad dresser or other diamond tool and are looking for an alternative, please contact SemiStar with your current tool and application information.
