Description
The World’s First Patent for a High-Precision Graphic Spin Coater
Possible to real-time check the rotation speed represented by graphics and numbers!
Easy for an end-user to gain the coating data!
| Key Features |  |
| 1. High Performing Compact Type | |
| 2. Minimal heat generated with an AC motor | |
| 3. High precision maintained at the high speed (8,000 RPM). | |
| 4. Low Price, Simple Design, Reduced Noise, Little Vibration | |
| 5. Up to 100 programs and 100 steps can be entered. | |
| 6. 3,000 RPM per second can be accelerated or decelerated. | |
| 7. Excellent location control after a sudden stop | |
| 8. Stable coating is assured regardless of the speed. | |
| 9. Convenient A/S due to a compact interior & exterior composition | |
| 9. Convenient A/S due to a compact interior & exterior composition |
| Accessories – Vacuum Chuck | |
| SpinCoater Type CS Chuck | |
| Silicon, Glass, Germanium Wafer | |
| SpinCoater Type L Chuck | |
| Thick Asymmetric Board | |
| SpinCoater Type H Chuck | |
| Glass, Quartz, Ceramic, Metal Plate | |
| SpinCoater Type R Chuck | |
| Square Plate, Customer – tailored | |
Specifications:

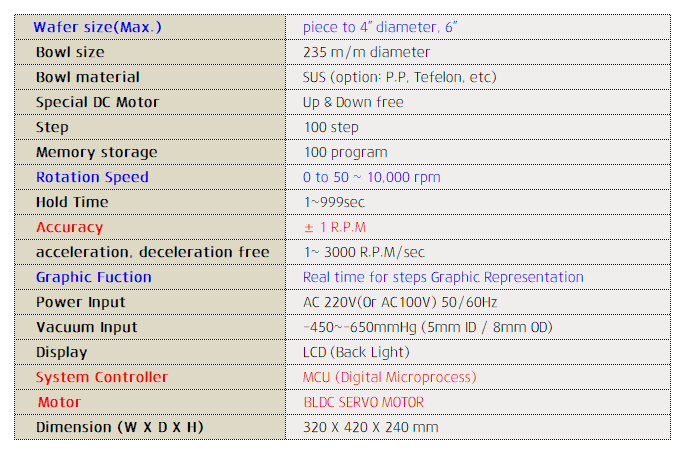

| (1) ACE-200 Model ~ Up to 4 inch wafer |
| Item | Specifications |
| Wafer size(Max) | 0.4~4 inch diameter |
| Bowl size | 235m/m |
| Bowl material | SUS or P.P |
| Special DC Motor | UP & Down free |
| Step | 100 |
| Memory storage | 100 program |
| Rotation Speed | 0 to 50~ 8000 rpm |
| Hold Time | 1~999sec |
| Accuracy | ±1 R.P.M |
| Acceleration, deceleration free | 3,000 R.P.M/sec |
| Graphic Function | Real time for steps Graphic representation |
| Power Input | AC 220V or 110V, 50/60 Hz |
| Vacuum Input | -450~ -650mmHg (6mm ID/ 8mm OD) |
| Display | LCD (back Light) |
| System Controller | MCU (Digital Microprocess) |
| Dimension ( W x D x H ) | 320 x 420 x 240 mm |

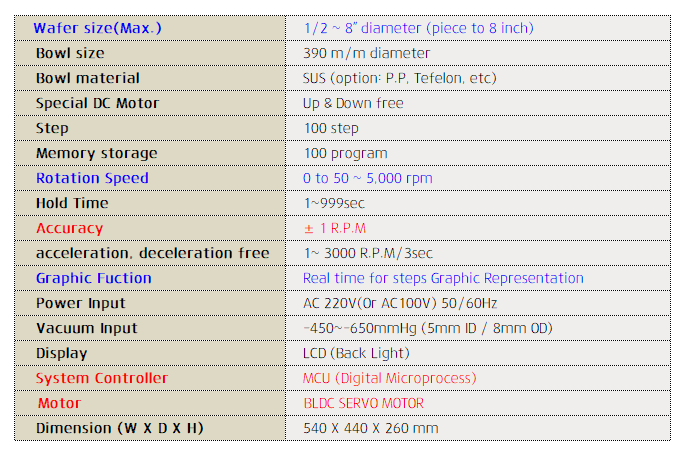

(2) TOP 8 Model ~ up to 8 inch wafer
| Item | Specifications |
| Wafer size(Max) | Up to 8 inch diameter |
| Bowl size | 390m/m |
| Bowl material | SUS or P.P |
| Special DC Motor | UP & Down free(very strong motor) |
| Step | 100 |
| Memory storage | 100 program |
| Rotation Speed | 0 to 50~ 5,000 rpm |
| Hold Time | 1~999sec |
| Accuracy | ±1 R.P.M |
| Acceleration, deceleration free | 3,000 R.P.M/sec |
| Graphic Function | Real time for steps Graphic representation |
| Power Input | AC 220V or 110V, 50/60 Hz |
| Vacuum Input | -450~ -650mmHg (6mm ID/ 8mm OD) |
| Display | LCD (back Light) |
| System Controller | MCU (Digital Microprocess) |
| Dimension ( W x D x H ) | 440 x 540 x 260 mm |

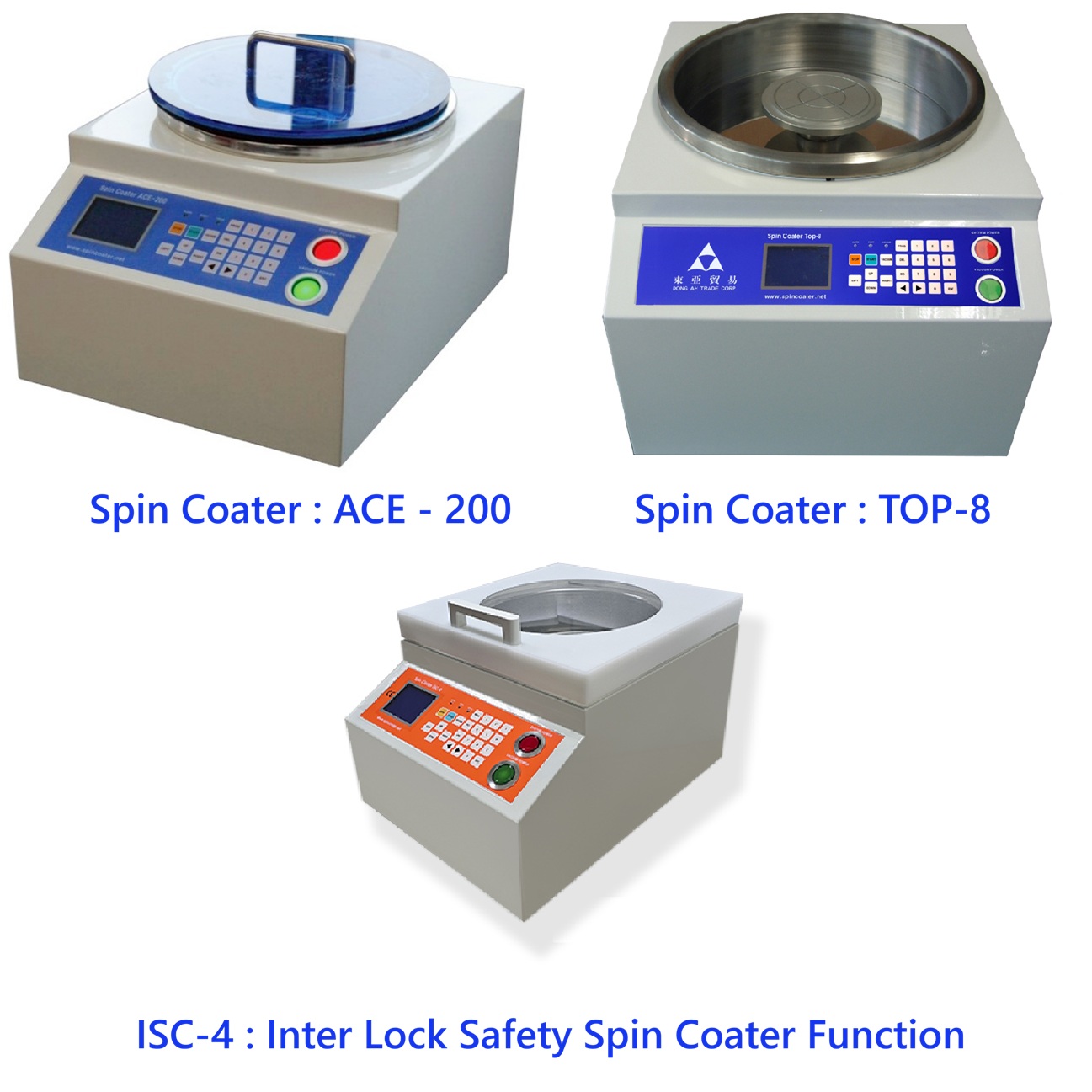

Inter Lock Safety Function ISC-4
Interlock safety features can be added instead of traditional transparent acrylic covers.
* Can only operate with the cover closed through the push button sensor.
* When the cover is opened, the Spin function is automatically stopped (Start function is also locked) to enhance the safety function.
>>> It is programmed to stop only rotating operations that are not in the power-off state <<<<
Information on Price and Shipping:
- Terms: EXW (Ex Works), South Korea
- Lead Time: In stock; backorders require approximately 2–4 weeks
- HS Code: 8479.89.9050
- Shipping & Duties: Customer is responsible for all shipping costs, tariffs, and applicable taxes
- Shipping Arrangement: We can arrange shipment using the customer’s FedEx, UPS, or DHL account
