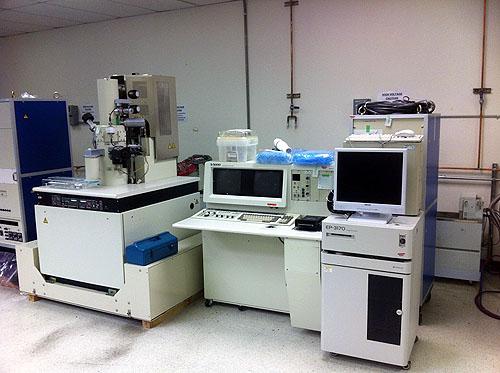

Hitachi FE-SEM S-5000H SEM Hitachi S-5000H

Description

SOLD !Sorry !!

Model:Hitachi FE-SEM S-5000H SEM Hitachi S-5000H

OEM: Hitachi

SN: 6933-06

Vintage:1997

Condition: Great condition. We sell it at AS IS WHERE IS or complete, fully tested condition at extra cost.

Location: Silicon Valley, CA,USA.

Price: Please contact us by email (sales@semistarcorp.com)

More info and photos:Download

Hitachi S-5000 SPEC(For reference only): Download

Hitachi S-5000H SEM Hitachi S-5000 info from Hitachi for your reference only.
Resolution:
0.6 nm (at accelerating voltage 30kV)
2.5 nm (at accelerating voltage 1kV)
.
Magnification:
x30 to x500 (low magnification mode)
x250 to x800,000 (high magnification mode)
.
Max sample size 9.5mm x 5mm x 2.4mm (with standard sample holder)
Max sample size 20mm x 6mm x 2.4mm (with standard sample holder)
.
Electron Gun:
Cold-cathode Field Emissions Electron Gun with mounted battler type electrostatic lens and anode heater
Accelerating Voltage 0.5 to 30 kV (variable in 0.1kV steps)
.
Lens: 3 stage electromagnetic lens reduction system
Stigmatall: 8 pole electromagnetic method (X and Y)
.
Deflection coil: 2 stage electromagnetic deflection method
Objective lens aperature: variable aperature
Sample change: air lock
Detector: secondary electron detector
.
Digital Image Capture upgrade
Used.This tool was known working when removed from a fab.

The Item is subject to prior sale without notice.
