EE TOOLS TOP MAX TM-A48

Description

The “EE TOOLS TOP MAX TM-A48 UNIVERSAL PROGRAMMER” is  only for end user. Please contact us if you have any questions. Subject to prior sale without notice. Appreciate your time!

Product Application: We use this  to erase the EPROM in the PCB of ESC-100, ESC-200, Brooks/Equipe,PRI robot controllers for AG Associates Heatpulse 4100, 4100S,4108,8108,8800 Rapid Thermal Processing equipment.  Then we rewrite files for EPROM by programmer. Files in BQ4013 can be wrote by EQT32 or programmer.

Location: Morgan Hill, CA USA95037

Condition: Complete, working, functional test with all cables.

Photos: Only for your reference.

Info from website for your reference only.

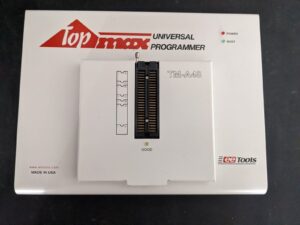

TopMax is one of the most reliable and long lasting instruments. It is software expandable universal device programming workstation that supports a wide variety of programmable devices in addition to the capability of testing digital ICs. The TopMax is a low-cost and high-performance programmer available today.

    PRODUCT HIGHLIGHTS

  •  Universal Device Programmer for 48-pin Textool Socket
  • Test TTL, CMOS Logic Devices
  • Test Dynamic, Static Memory Devices
  • Support PC Parallel port
  • Win 95 / 98 / NT / 2000 / XP
  • Internal (110 ~ 250 VAC) switching power supply

    DEVICES PROGRAMMED

  • SAMSUNG NAND K5Axx / K5Dxx / K9Fxx / K9Kxx / KABxx Series
  • EPROM / EEPROM / Flash EPROM / Serial E(E)PROMs
  • Bipolar PROM
  • PALs, PALCEs, GALs
  • Dallas NV RAMs
  • PEELs / EPLDs / SPLDs, CPLDs
  • MACH series / MAX series
  • 8741, 8742, 8748, 8749 series
  • 87C51/52, -FA, -FB, -FC, ‘528, ‘652, ‘654, ’54 89Cxx, 89Sxx, 89LVxx, 89Cxxxx series 87C751/752
  • ST62xx series
  • Xilinx XC72xx, XC73xx series
  • WSI’s PSD3xx series
  • PIC12Cxxx, PIC16xxx, 17xxx series
  • MC68705, MC68HC705, MC68HC711 series
  • Z86Cxx, Z86Exx series

    DEVICES TESTED

  • TTL type 54, 74(S, LS, L, H, HC) series
  • CMOS type 40, 45 series
  • Dynamic Memory 4164 – 1MBit
  • Static Memory 6116 – 6256
  • User definable test pattern generation

    KEY FEATURES

  • Auto search device select function supports E(E)PROMs & Microcontrollers.
  • Device insertion test identifies improperly inserted device before programming.
  • Programs 8 devices at once (optional).
  • Check for incorrect device insertion, backward, incorrect position, and poor pin contact.
  • High-speed device function tests and user creatable test library.
  • Device Operations: Read,Blank check, Program, Verify, Checksum, Data compare, Security, Auto(blank check-program-verify), Option Bit program.

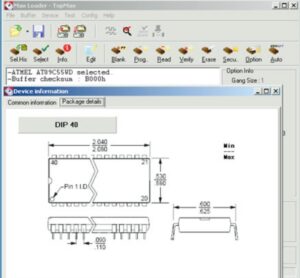

  • Display programming parameters and optional bit information on the screen.
  • Set device/buffer address ranges before programming devices.
  • Auto Programming for production programming.
  • User-changeable programming parameters.
  • Built-in editor for both buffer date and test vectors.
  • Support Binary and all hex files (POF and JEDEC, Intel Hex, Motorola S Records, Tekhex) with Load,Edit, and Save commands.
  • Supports real 5, 3.3, 2.7, and 1.8 volt for programming power.
  • Detects all pin locations for poor or damaged pin contacts.
  • Internal universal power supply,110-240 VAC (no separate power supply required in foreign country).
  • Current limiting protects hardware circuit from improperly inserted or defective chips and operation errors.
  • 48-pin ZIF(Zero Insertion Force) socket accepts both 300mil and 600 mil DIP devices up to 48 pins.
  • Hardware diagnostic program exams all 48-pin drivers before using programmer.

    PROGRAMMING SPEED (100 % data in memory) min:sec.00

Device P/N Read Blank Prog Verify Erase
AM29F032B 4.70 4.80 56.24 4.73 38.16
AM29LV128ML 6.70 6.65 03:26.00 6.65
AM29LV256MH 17.41 16.00 04:06.16 16.77
AM29LV641DH 4.20 4.43 42.02 4.44
AM29LV641DH(TopMax) 01:40.00 01-38.00 04:48.54 01:42.00
E28F128J3A 9.93 7.49 1:55 7.75 01:43.30
E28F128J3C 9.93 7.49 02:01.80 7.75 30.31
E28F640J3C 4.27 4.09 70.02 4.19 17.5
K8D3216UTC-T 2.47 2.47 22.17 2.51
MX26L004BQC 0.81 0.81 28.24 0.81 31.87
MX29LV641MH 4.86 01:10.40 4.83
RD38F2040 3.09 3.09 18.71 3.09 53.47
RD38F4050 18.81 18.08 02:55.4 18.30 04:41.8

* Programming Speed With 100% Data in Memory , Times in sec.

      TECHNICAL SPECIFICATION

  • Dimension: Module : 9.75 (L) x 7.50 (W) x 2.25 (H)
  • Weight : 4.25 lbs
  • PC Host Interface: A standard parallel port (LPT1, LPT2, LPT3)
  • Built-in Socket : Textool 48 pin ZIF(300/600 mil) standard.

      SYSTEM REQUIREMENT

  • TYPE: IBM 386, 486, PS/2, Pentium, portable(Laptop) Or compatibles.
  • A hard disk drive is recommended for software installation.
  • RAM size: 512K
  • I/O PORT: Parallel Port

      SAFETY STANDARD

  • CE compliant
