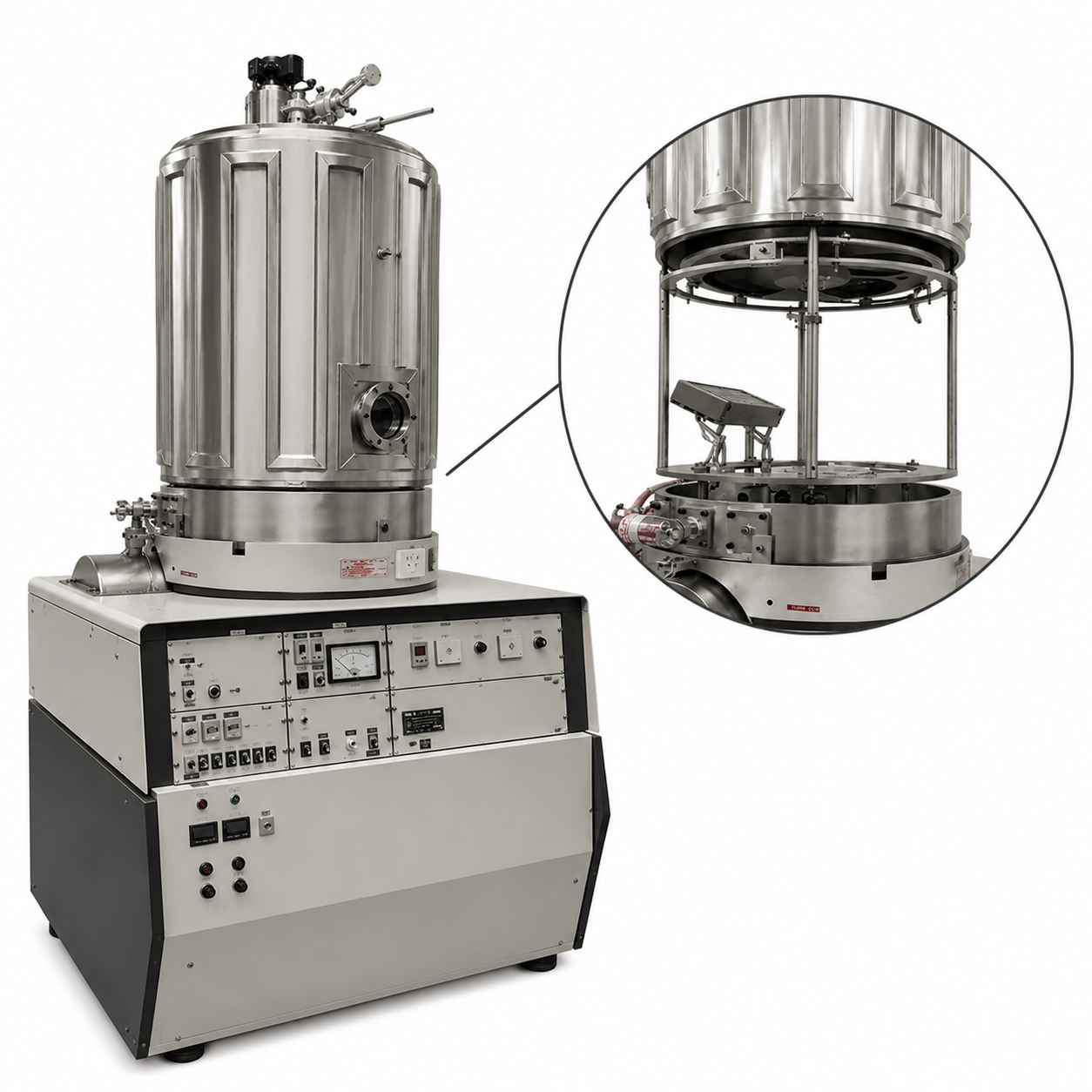

CHA Industries Thermal Evaporator System Semiconductor Vacuum Deposition Equipment
SemiStar Corp. offers a CHA Industries Thermal Evaporator System for semiconductor, university, research institute, optical coating, and advanced materials thin film deposition applications.
This system is currently configured as a 2-source thermal evaporator. More detailed photos are available upon request.
Depending on customer budget and project requirements, we can sell this system in AS-IS condition or as a complete, working system with functional test. Please contact us for more information. We appreciate your time.
An optional e-beam evaporator function is also available under the complete, working, functional test option. The e-beam configuration includes 1 source. 2 to 4 e-beam sources may be available, but are generally not recommended unless specifically required by the customer application.
Photos shown are for reference only. Actual configuration, installed accessories, options, and condition may vary. Final specifications are subject to formal quotation.
Availability
- CHA Industries thermal evaporator system
- 2-source thermal evaporation configuration
- Available AS-IS condition
- Available complete, working, functional test condition
- Optional e-beam evaporator function available under functional test scope
- More photos and details available upon request
- Subject to prior sale
Current Configuration
- CHA Industries thermal evaporator system
- 2 thermal evaporation sources
- Heating function
- Up to 8-inch substrate capability
- Crystal thickness monitoring function
- Diffusion pump vacuum configuration
- Main unit without wheels
- Other modules with wheels
Optional E-Beam Evaporator Function
- E-beam evaporator option available under complete, working, functional test scope
- 1 e-beam source configuration available
- 2 to 4 e-beam sources may be available, but are not generally recommended unless required
- Optional DC power supply and control cabinet may be required for e-beam function
- Final e-beam configuration subject to inspection and quotation
Sales Conditions
AS-IS Condition
- System sold in current condition
- No refurbishment included unless separately quoted
- Recommended for customers with internal engineering, inspection, and refurbishment capability
- Final included components to be confirmed before purchase
Complete, Working, Functional Test Condition
- System inspected and functionally tested before shipment
- Basic operating functions verified based on agreed scope
- Thermal evaporation function test available
- E-beam function test available if included in final quotation
- Final acceptance criteria to be defined before purchase order
System Description
The CHA Industries thermal evaporator system is a vacuum thin film deposition platform suitable for semiconductor material research, optical coating, metal evaporation, lift-off process support, and advanced materials development.
The system includes thermal evaporation capability, substrate heating, crystal thickness monitoring, and diffusion pump vacuum configuration. The platform can support substrates up to 8 inches depending on final fixture and process configuration.
Typical Applications
- Thermal evaporation thin film deposition
- Metal evaporation
- Optical coating research
- Semiconductor material research
- Lift-off process applications
- University and institute R&D applications
- Advanced materials development
- Laboratory vacuum coating applications
- Optional e-beam evaporation applications
Reference Facility Requirements
The following facility requirements are provided for reference only. Final requirements must be confirmed based on actual system configuration and final quotation scope.
| Electrical Requirements | AC 208 V, 3 phase, 100 A, 50/60 Hz, 5-wire with active neutral and equipment ground; tolerable voltage ±5% |
| Cooling Water | Filtered 3.5 gpm at 50 psig inlet pressure, 60 to 80°F. Chiller or PCW plant cooling water may be used. |
| CDA | Approximately 25 cfm at 60 to 125 psig inlet pressure, filtered and dried |
| Nitrogen Purge | Approximately 10 cfm at 30 psi |
| LN Cooling | Approximately 1.5 gallons |
Reference Footprint
| Main Frame with Chamber | 50 in. W × 60 in. D × 125 in. H |
| DC Power for E-Beam Function | 30 in. W × 40 in. D × 28 in. H; approximately 5 ft to main frame and 2 ft to dry pump |
| Control Cabinet for E-Beam Function | 22 in. W × 27 in. D × 80 in. H; approximately 2 ft to main frame |
| Dry Pump Reference | 16 in. W × 38 in. D × 22 in. H; approximately 2 to 3 ft to main frame |
| Mobility | Main unit has no wheels. Other modules have wheels. |
Facility Notes
- CV8 power supply is 8 kW and may require approximately 50 A for full load.
- Diffusion pump is approximately 5 kW and may require approximately 30 A.
- Main unit may require approximately 20 A.
- A power distribution box may be used to split AC power to major units.
- If customer wants to split AC power, at least two 30 A circuits and one 20 A circuit may be required.
- E-beam power may only run approximately 50–60% of full load depending on available facility power and configuration.
- A chiller may be used as the cooling water supply. The 3.5 gpm cooling water flow can be used for chiller selection.
RFQ Information Requested
- Preferred purchase condition: AS-IS or complete working functional test
- Thermal evaporation only or thermal + optional e-beam function
- Substrate size and material
- Deposition materials
- Film thickness requirements
- Required deposition rate and uniformity
- Vacuum level requirements
- Heating requirements
- Facility location and available utilities
- Installation or training requirements
- Expected purchase timeline
Important Notes
- All configurations and specifications are subject to final inspection and formal quotation.
- AS-IS systems are sold in current condition without refurbishment unless otherwise specified.
- Complete, working, functional test scope must be defined in the final quotation before purchase order.
- Optional e-beam function availability and performance must be confirmed before quotation.
- Facility requirements are provided for reference only and may change depending on final system configuration.
- All OEM names and trademarks belong to their respective owners.
- Website information is for reference only and is not final purchase specification.
