Agilent HP 4062UX Parametric Test System

The HP4062UX Semiconductor Process Control System is the high-end system of the HP4062 Semiconductor Parametric Test System family. The HP 4062UX satisfies all of the requirements of the Integrated Circuit Manufacturers for both process monitoring and process development. Since the HP 4062UX uses the same mea­surement hardware as the HP4062C, it maintains the same highly accurate and reliable measurement capabilities as the HP4062C, such as high-speed measurements over a wide measurement range.
In addition to the sophisticated hardware of the HP4062C, the HP 4062UX provides powerful software capabilities with the HP BASIC/UX operating environment. HP BASIC/UX combines the most powerful instrument control language. HP BASIC, with all the elements of HP-UX, the Hewlett-Packard implementation of the AT&T System V UNIX* operating system. HP Interactive Mea­surement and Analysis (IMA) Software makes measurements inter­actively by providing a softpanel user interface.


Category: Tags: ,

Description

Model: HP 4062UX

Category:  Tester

Original Equipment ManufacturerHEWLETT PACKARDAgilent

Condition: Used, Complete, working condition. Fully tested  by seller

Valid Time: Subject to prior sale

Lead Time: 4 to 6 weeks

Location: Silicon Valley, CA, U.S.A.

Warranty: 90 days non-consumable parts

Installation and training: Available at extra charge

Service Contract: Available at extra charge

HEWLETT PACKARD Agilent HP 4062UX  Tool configuration sheet:

1.GENERAL INFORMATION DC Parametric Tester

Tool ID :H04M0M4062

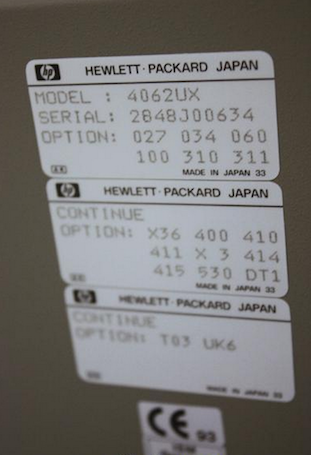

Serial Number :2848J00634
Vintage: unknown
OEM: Agilent/HP
Product Name :Parametric Test System
Model 4062UX
Process
OS Version HP-UX 10.20
Software Version SPECS 2.51
Calibration Date 2014/2/19

2.SAMPLE SPECIFICATION

Sample Size:N/A
Sample Shape: N/A
Cassette Port :N/A
Wafer Cassette: N/A
SMIF Interface: N/A

3. SYSTEM CONFIGURATION

Pin Board 48 Boards

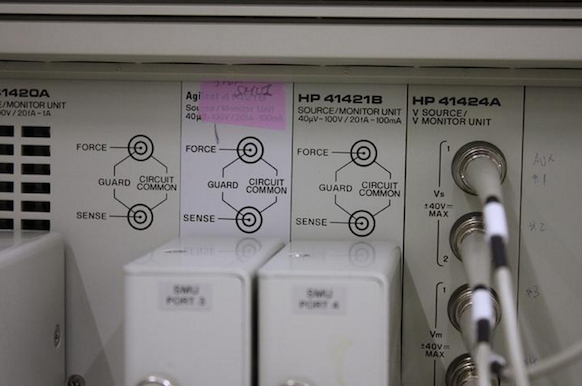

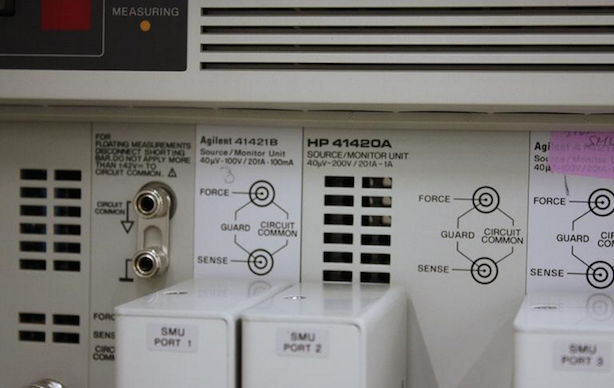

SMU 3 MP SMU, 1 HP SMU (Total 4 SMU)
LCR Yes (4284A 20Hz-1MHz LCR METER)
Frequency Counter: No
Pulse Generator: No

The HP4062UX Semiconductor Process Control System is the high-end system of the HP4062 Semiconductor Parametric Test System family. The HP 4062UX satisfies all of the requirements of the Integrated Circuit Manufacturers for both process monitoring and process development. Since the HP 4062UX uses the same mea­surement hardware as the HP4062C, it maintains the same highly accurate and reliable measurement capabilities as the HP4062C, such as high-speed measurements over a wide measurement range.
In addition to the sophisticated hardware of the HP4062C, the HP 4062UX provides powerful software capabilities with the HP BASIC/UX operating environment. HP BASIC/UX combines the most powerful instrument control language. HP BASIC, with all the elements of HP-UX, the Hewlett-Packard implementation of the AT&T System V UNIX* operating system. HP Interactive Mea­surement and Analysis (IMA) Software makes measurements inter­actively by providing a softpanel user interface.
