Film Thickness Measurement Service

$300.00 $150.00

Category:

Description

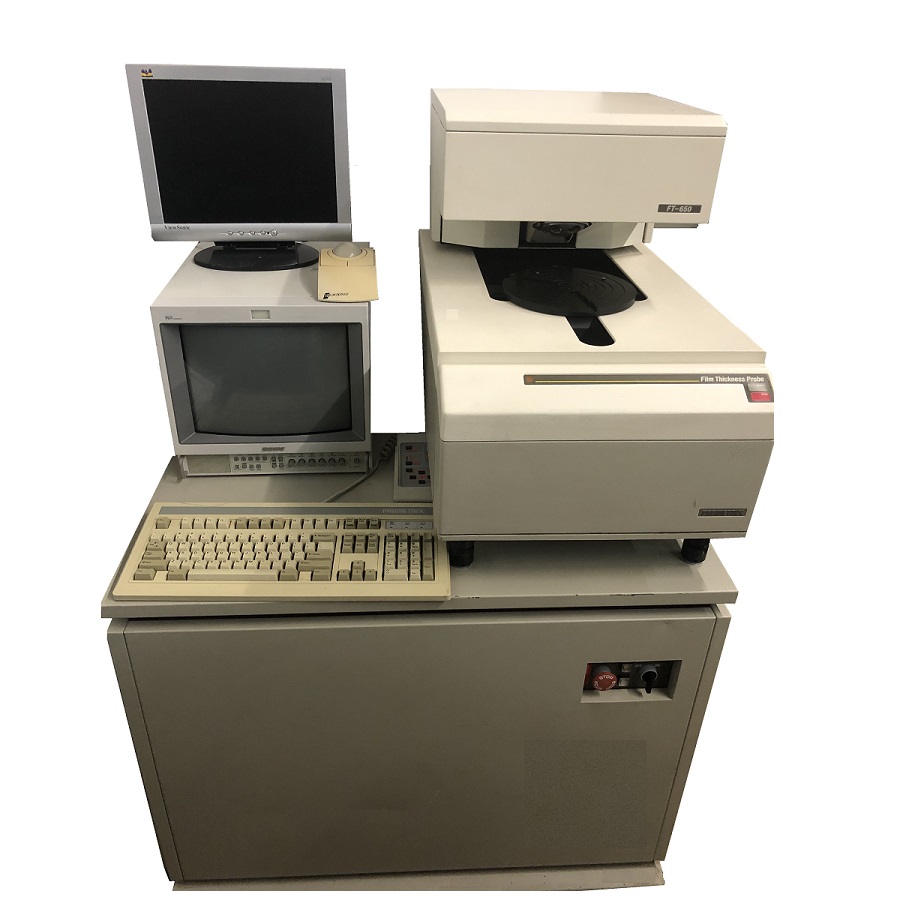

Instrument Model: KLA Tencor Prometrix FT-650 Film Thickness Probe System

DEMO Service Rates and terms:

(1) Setup & Training Fee for In House Service: $450.00 ($150.00X3).
(2) Use the tool time rates: $150.00/hr
(3)Lead time: After payment, we will schedule time for the service. Normally the lead time is 1 to 2 weeks. Appreciate your time.
(4) We also sell the Prometrix FT-650 Film Thickness Probe System at complete, working, tested condition.

Configuration:

  1. Wafer Size: 3”, 3.25”, and 100, 125, 150, 200mm Wafer Capability
  2. Computer/Software: The FT-650 is a PC (486)-based optical film thickness probe system. 110M Hard Disk, a cartridge drive (44MB removable cartridges, for storing test configurations and collected data) and a 3.5 Floppy Disk drive for loading software updates. The control software is StatTrax.
  3. Tester (Cabinet): The tester is the “focal point” of the FT system. The tester includes the measurement optics, the video camera, the precision XY stage and its associated motors and controllers, the I/O electronics, and the computer.
  4. FT Tester (head, optical): It contains the mechanical and optical components for sample placement, sample viewing, scanning and measurement. A 70X video camera permits viewing of the sample measurement area.
  5. Wafer Stage: A very high precision sample stage performs the scan and permits X-Y positioning with 360 degree theta rotation.
  6. Printer (optional).
  7. Wafer Handler C2C (optional): The C2C is an automated wafer handler that transfers wafers between the tester and one or two cassettes containing up to 25 wafers each.
  8. Manual Controller (Keypad): The keypad controls wafer stage movement and image focusing during patterned wafer tests. It can be also used to position a test wafer in semi-automatic and manual modes.
  9. Objective Lens: Automatic 5-position rotating turret: 2.5x, 5x, 10x, 20x, 50x available
  10. Monitors: Color Video Monitor and Computer Monitor
  11. Line Conditioner: AC line noise protecter
  12. Additional Components for Auto Run (enable the pattern recognition capability): Cognex Vision System, Vision 3100 / Video Switch
  13. Light Source: Plug-in lamp source (50-0069), Tungsten-halogen lamp

Typical Specifications:

·        Measurement range

  • Oxide                              70Å -4mm
  • Nitrides/Oxynitrides 100Å -4mm
  • Resists                500Å -4mm
  • Transparent multilayer total sum 500Å -4mm for 3 layers
  • Poly on Oxide                400Å to >8000Å poly on 400Å to >1700Å oxide
  • Oxide on Aluminum 2500Å -3mm
  • SOG need to select feasible optic filters (optional)
  • Typical Accuracy: +/-1% of NIST certified range (at 500Å, 1000Å and 2000Å nominal thickness)
  • Typical Repeatability: 5% or 5Å-1σ, whichever is greater, using the 5x objective lens
  • Throughput: 50 monitor wafers per hour or 30 product (patterned) wafers per hour using automate pattern recognition capability
  • Auto Focus Speed: 2-5 seconds
  • Measurement Speed: 1.5-5 seconds typical per site
  • Stage Size: 8.5” diameter
  • Data Transfer: RS232 or SECS-II
  • Analysis Capabilities:
  • Mapping: Contour, 3-D and Die Maps
  • Scanning: Diameter Scan
  • Sampling: Quick Tests; user-definable tests
  • StatTrax Software: Up to 729 definable test configurations per cartridge

Average, difference and ratio maps

Process control charts

Statistical calculations

Database management

Correlation Curves

  • Power Requirements: 110/220Vac, 50-60Hz, <15A
  • Vacuum: 20 inHg
  • Shipping Weight: Complete FT-650: 700 lbs; Tester: 165 lbs
  • Dimensions: Tester: 31″W x 18″D x 23″H

Complete FT-650:  36” W x 62″D x 62″H
