Refurbished Electroglas EG 1034XA EG 1034X-6A Wafer Prober Semiconductor Equipment

SemiStar Corp. provides refurbished Electroglas EG 1034 Semi-Automatic Wafer Prober systems for semiconductor wafer probing, device testing, and wafer classification applications. Available models include the EG 1034XA and EG 1034X-6A configurations for compound semiconductor fabs, universities, research institutes, and semiconductor manufacturing environments.

The Electroglas 1034 series is a compact bench-top semi-automatic wafer probing platform designed for operational simplicity, high-speed wafer throughput, and reliable semiconductor device testing. The system utilizes the ELECTROGLAS / XYNETICS solid-state high-speed X-Y positioning system for fast wafer loading, unloading, alignment, indexing, and probing operations.

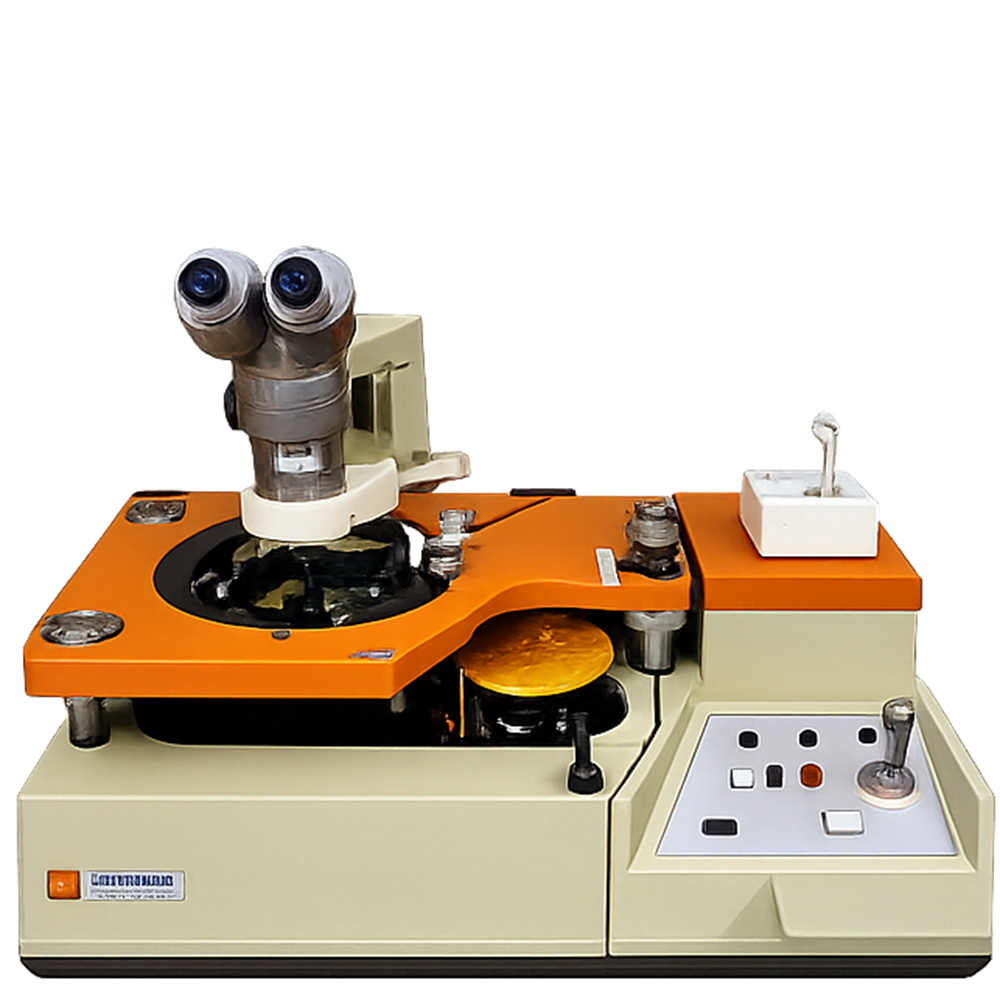

Photos shown are for reference only. Actual configuration, condition, options, and installed accessories may vary.

Available Inventory

• Total inventory: 15 systems
• 8 systems refurbished to OEM specifications
• 7 systems used / untested condition
• Subject to prior sale

Available Models

• EG 1034XA — Typically configured for 2-inch to 4-inch wafers
• EG 1034X-6A — Configured for up to 6-inch wafers

System Configuration

• Prober module
• Power module
• Compact bench-top design
• Optional remote-mounted power module capability
• Interconnecting cable system
• Solid-state high-speed X-Y positioning system
• Manual and semi-automatic operating modes
• Automatic indexing and probing capability
• Automatic inking capability
• Automatic wafer return to load position

Key Features

• High-speed ELECTROGLAS / XYNETICS positioning system
• Fast wafer loading and unloading outside probe ring area
• Automatic gross positioning
• Simplified theta alignment
• Precise device alignment
• Multi-function joystick control
• Up to 20 manual commands through single joystick control
• Automatic probing cycle
• Automatic indexing control
• High wafer throughput capability
• English or metric indexing system support
• Operational simplicity for production and laboratory environments

Wafer Capability

• 2-inch wafers
• 3-inch wafers
• 4-inch wafers
• 5-inch wafers
• 6-inch wafers (EG 1034X-6A)

Applications

• Semiconductor wafer probing
• Wafer electrical testing
• Device classification
• Research and development laboratories
• Compound semiconductor applications
• Production wafer probing
• University semiconductor research
• Failure analysis support

Optional Refurbishment / Service Capability

• Refurbishment to OEM specifications
• System testing and calibration
• Preventive maintenance service
• Installation and startup support
• Operator training
• Available spare parts support

Facility Requirements

Customer is responsible for confirming all facility requirements including power, compressed air, vacuum, exhaust, nitrogen, and probe card compatibility before purchase.

Facility requirements may vary depending on actual system configuration and installed options.

Important Notes

• All specifications are subject to verification
• Configurations may vary between systems
• Equipment availability subject to prior sale
• All product information is for reference only
• Please refer to official quotation for final specifications and included accessories

Request for Quotation

To help recommend the proper Electroglas wafer prober configuration, please provide:

• Wafer size
• Wafer material
• Probe card information
• Testing application
• Required automation level
• Expected delivery schedule
• Installation location

Contact SemiStar Corp.
