Description

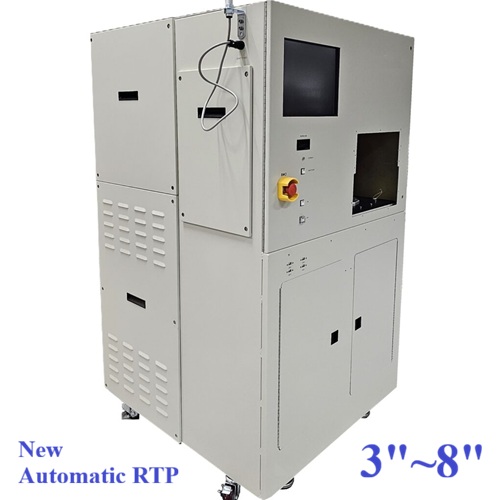

New 4-8 inch Automatic RTP. The best replacement equipment for used obsolete AG Associates Heatpulse 4100, Heatpulse 4100S, Heatpulse 4108, Heatpulse 8108, Heatpulse 8800; Mattson Steage 2000,Mattson Steage 2800, Mattson Steage 2900 Rapid Thermal Processing, Rapid Thermal Annealing equipment.

Category:  RTP – Rapid Thermal Processing

The new RTP is production-proven stand alone atmospheric RTP (Rapid Thermal Processing) system, which uses high intensity visible radiation to heat single wafer for short process periods of time at precisely controlled temperatures. The process periods are typically 1-900 seconds in duration, although periods of up to 9999 seconds can be selected. These capabilities, combined with the heating chamber’s cold-wall design and superior heating uniformity, provide significant advantages over conventional furnace processing.

Key Features:

1. 4-8 inch Si,SiC, GaAs, InP, GaInP wafers
2. Double O Ring for O2 sensitive applications
3. O2 Sensor/Analyzer for O2 sensitive applications in production
4. Integrated solid robotic wafer transfer
5. Multiple susceptors available for high through-put for compound materials, such as SiC, GaAs, InP, GaInP etc.
6. Many years’ production-proven Real RTP/RTA/RTO/RTN system
7. Scattered IR light by special gold plated Al chamber surface.
8. Advanced Software package with Real Time control technologies and many useful functions. Advanced PID Control Technology with Fuzzy Logic Learn capability and Chamber Thermal Data.
9. Powersum function which can save valuable compound material wafers, such as SiC, GaAs, InP, GaInP etc.
10. Consistent wafer-to-wafer process cycle repeatability.
11. Top and bottom cross High-intensity visible radiation Tungsten halogen lamp heating for fast heating rates with good
    repeatability performance and long lamp lifetime.
12. 10 bank zone control
13. Cooling N2 (Or CDA) flows around the lamps and quartz isolation tube for fast cooling rates
14. Elimination of external contamination by Isolated Quartz Tube
15. Up to six gas lines with MFCs and shut-off valves
16. Energy efficient.
17. Made in U.S.A.

Please contact us if you are interested in the New 4-8 inch Automatic RTP. Appreciate your time.
