Description
Model:HP/Agilent E5250A +E5252Ax4

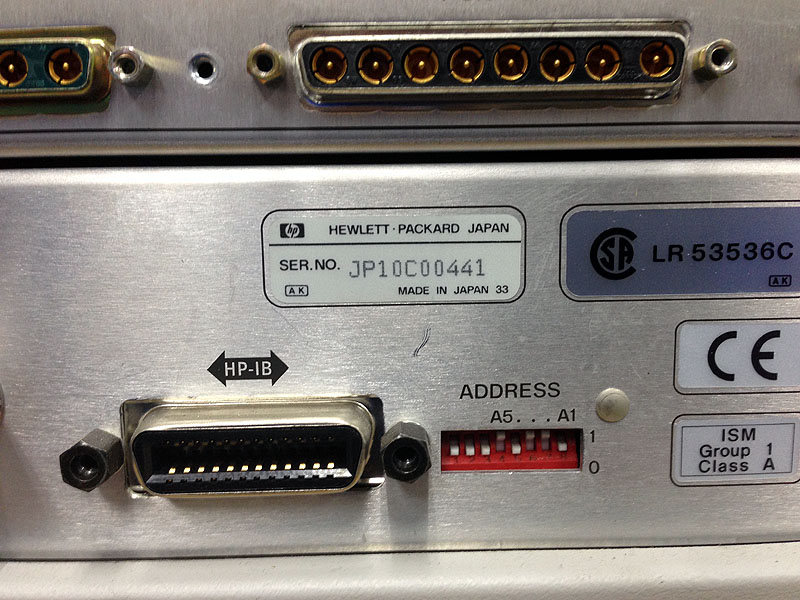

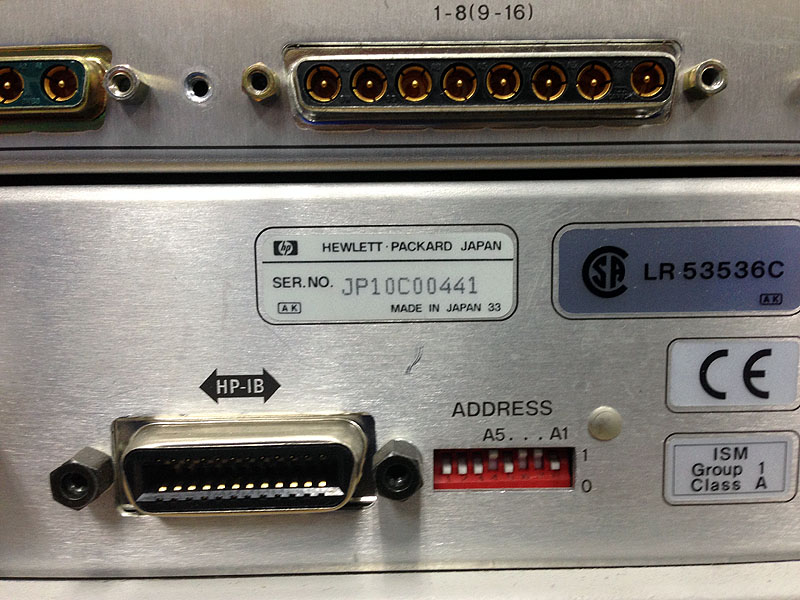

SN:JP10C00441
Category: Tester
Original Equipment Manufacturer: HEWLETT PACKARD ; Agilent

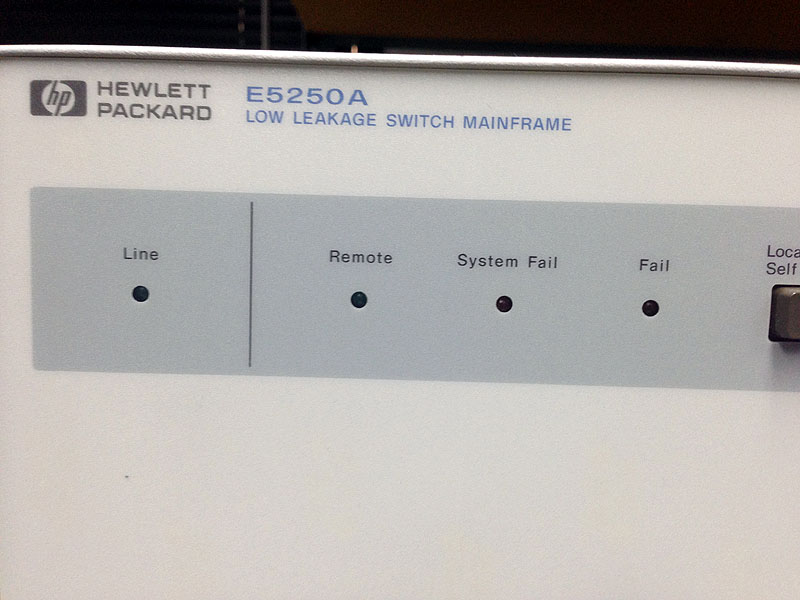

The Agilent E5250A Low-leakage Switch mainframe is a high-performance switching unit that allows you to maximize the performance of your Agilent 4155B/4156B for both CV-IV measurements and long-term reliability testing. The Agilent E5250A has four card slots, which accept the two available card types.
For long- term reliability measurements, the Agilent E5255A (or E5250A option 501) multiplexer module is the tool of choice. The multiplexer module has 24 outputs, organized in groups of 8. Each module has one multilevel dc bias input for each set of 8 channels, permitting the use of inexpensive power supplies for a consistent stress. The Agilent E5250A switch mainframe accepts 4 of these cards, for a total of 96 outputs. Each channel can also have a customer-selected protection resistor to safeguard against surges that could cause erroneous results. Finally, the user can gang up to 4 of the Agilent E5250A switch mainframes together to create a system with 384-channel capability.
Specification:

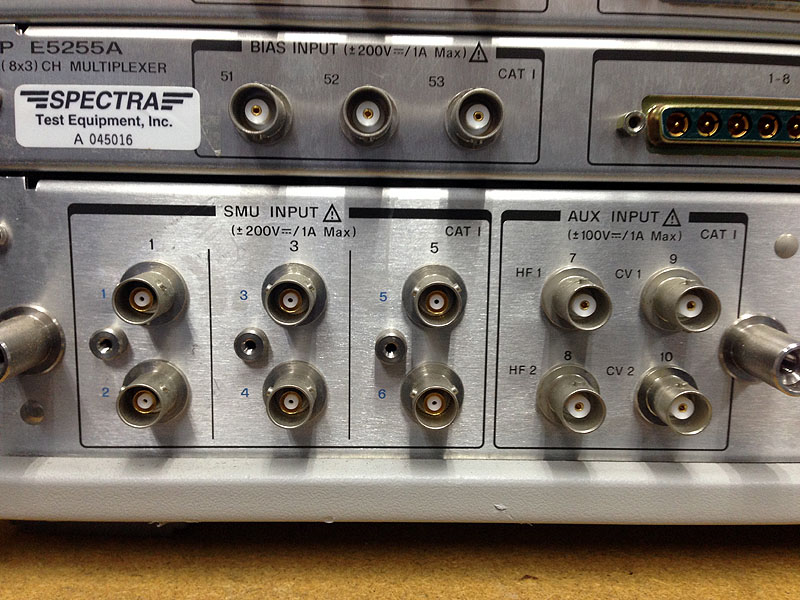

No. of Ports (with option 501, E5255A):
Low Leakage I-V port: 3
Bias Port: 3

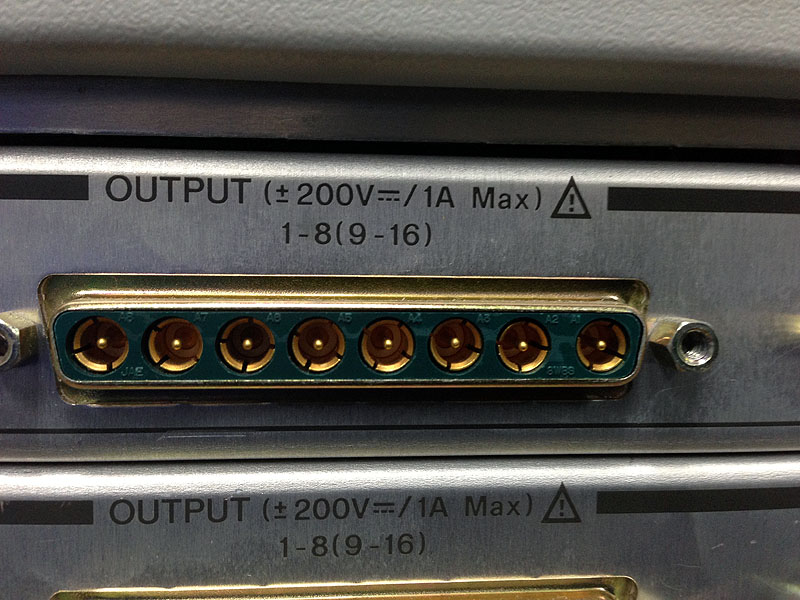

Output Channels: 24 (8 x 3)
Max. Current rating (A): 1.0
Max. Voltage rating (V)
Channel to Ground: 200
Channel to Channel: 300
Close Ch Residual R (W)
Low Leakage I-V Port: 0.6
Bias Port: 1.0
Ch Isolation R (W)
Low Leakage I-V Port: 1e13
Bias Port: 1e9
Offset current: < 0.1 pA (Low Leakage I-V Port)
Channel Crosstalk Capacitance: < 0.4 pF/ch (Low Leakage I-V Port), < 5 pF/ch (Bias Port)
Offset voltage (EMF) at 5 min.: < 80 μV (Low Leakage I-V Port)
Guard Capacitance: < 180 pF5 (Low Leakage I-V Port), < 60 pF (Low Leakage I-V Port, when the port is open)
Relay Contact Life: > 108 times (Dry Switching Mode)
Settling Time < 3.5 sec to < 0.4 pA (Low Leakage I-V Port) after 10 V applied
Configuration:

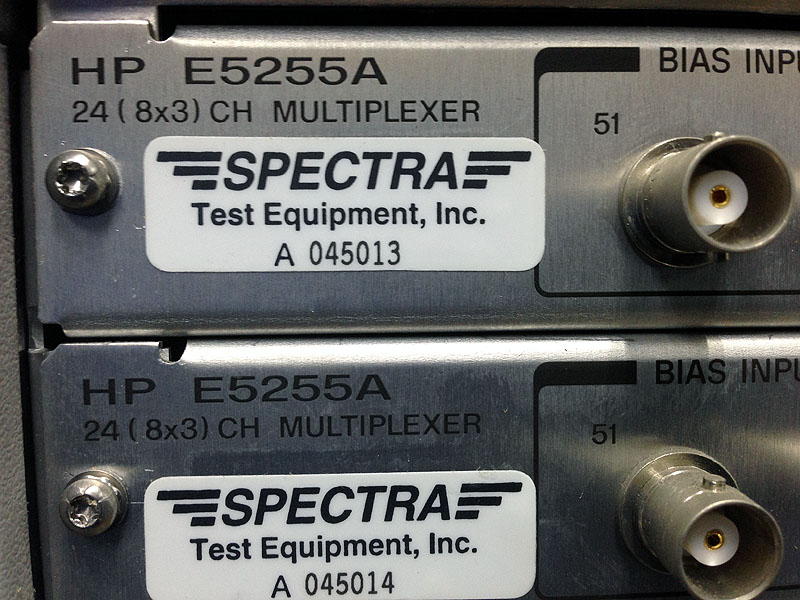

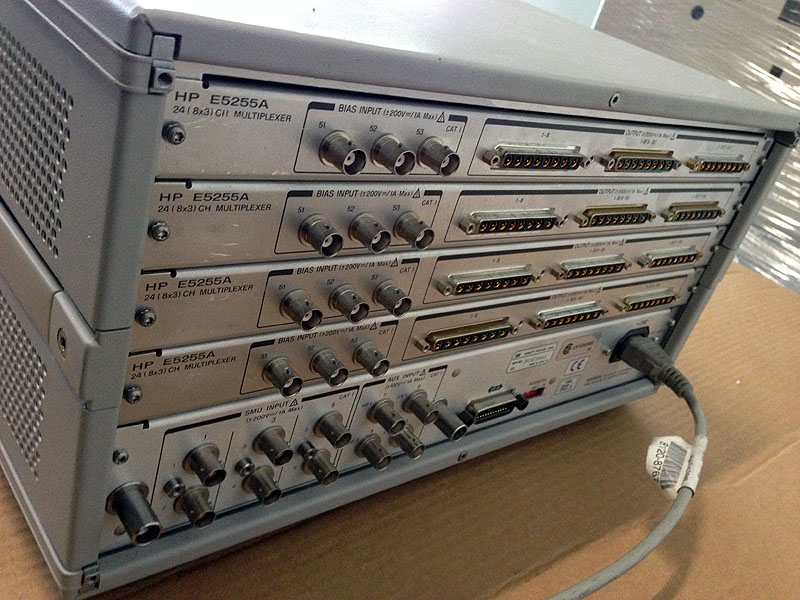

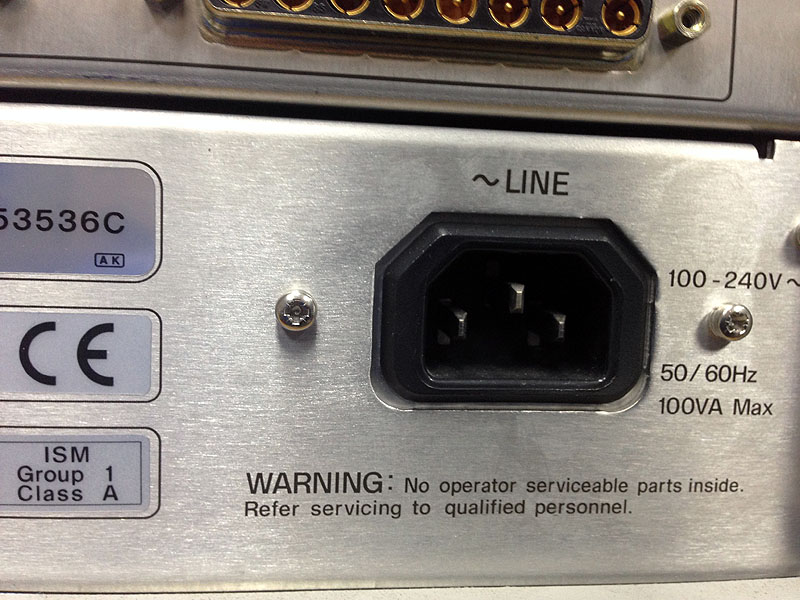

E5250 Frame + 4x E5255A Card (plugged-in), no cable
Power on and self-test passed.
Condition: Used (An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used.). System is In Good Physical Condition; Tested and in Working Condition.
Related Equipment: HP/Agilent 4062UX, HP4062UX, HP4062C, Keysight E5250A, HP/Agilent E5250, HP/Agilent E5255A. .
