Description

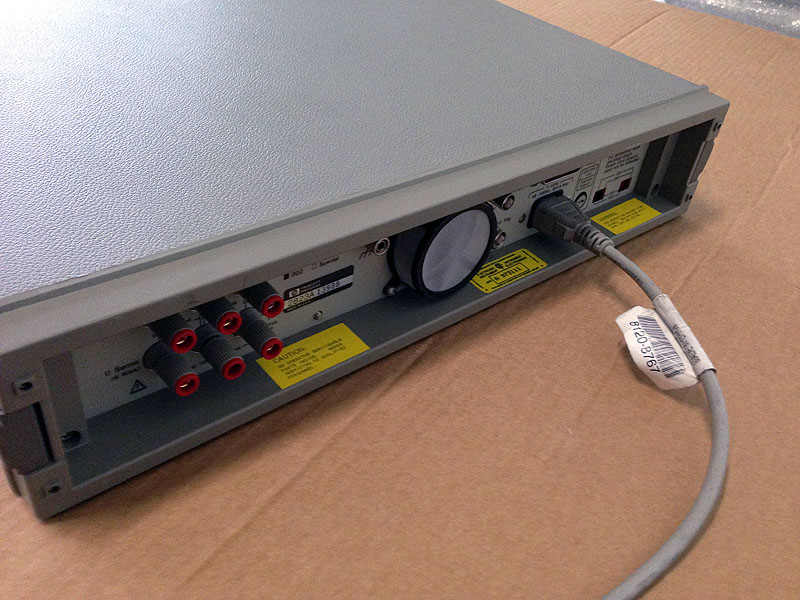

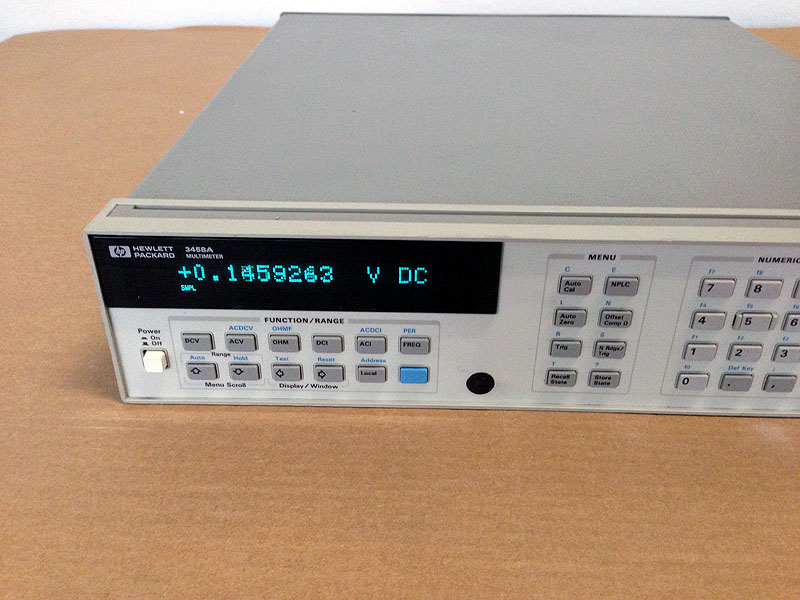

Model:HP/Agilent 3458A 62 black Multimeter
SN: 2823A 13988
Category: Tester
Original Equipment Manufacturer: HEWLETT PACKARD ; Agilent
The Agilent Technologies 3458A Multimeter shatters long-standing performance barriers of speed and accuracy on the production test floor, in R&D, and in the calibration lab. The 3458A is simply the fastest, most flexible, and most accurate multimeter ever offered by Agilent Technologies. In your system or on the bench, the 3458A saves you time and money with
unprecedented test system throughput and accuracy, seven function measurement flexibility, and low cost of ownership.
Select a reading rate of 100,000 readings per second for maximal test throughput. Or achieve highest levels of precision with up to 8.5 digits of measurement resolution and 0.1 part per million transfer accuracy. Add to this, programming compatibility through the Agilent Multimeter Language (ML) and the 3458A’s simplicity of operation and you have the ideal
multimeter for your most demanding applications.
Features:
dc Volts
- 5 ranges: 0.1 V to 1000 V
- 8.5 to 4.5 digit resolution
- Up to 100,000 readings/sec (4.5 digits)
- Maximum sensitivity: 10 nV
- 0.6 ppm 24 hour accuracy
- 8 ppm (4 ppm optional) / year voltage reference stability
Ohms
- 9 ranges: 10 W to 1GW
- Two-wire and four-wire Ohms with offset compensation
- Up to 50,000 readings/sec (5.5 digits)
- Maximum Sensitivity: 10μW
- 2.2 ppm 24 hour accuracy
ac Volts
- 6 ranges: 10 mV to 1000 V
- 1 Hz to 10 MHz bandwidth
- Up to 50 readings/sec with all readings to specified accuracy
- Choice of sampling or analog true rms techniques
- 100 ppm best accuracy
dc Current
- 8 ranges: 100 nA to 1 A
- Up to 1,350 readings/sec (5.5digits)
- Maximum sensitivity: 1pA
- 14 ppm 24 hour accuracy
ac Current
- 5 ranges: 100 μA to 1 A
- 10Hz to 100 kHz bandwidth
- Up to 50 readings/sec
- 500 ppm 24 hour accuracy
Frequency and period
- Voltage or current ranges
- Frequency: 1 Hz to 10 MHz
- Period: 100 ns to 1 sec
- 0.01% accuracy
- ac or dc coupled
Maximum speeds
- 100,000 readings/sec at 4.5 digits (16 bits)
- 50,000 readings/sec at 5.5 digits
- 6,000 readings/sec at 6.5 digits
- 60 readings/sec at 7.5 digits
- 6 readings/sec at 8.5 digits
Measurement set-up speed
- 100,000 readings/sec over GPIB or with internal memory
- 110 autoranges/sec
- 340 function or range changes/sec
- Post-processed math from internal memory
Configuration of this tool:
Standard Tool, Includes Option 3458A-002 High stability 4 ppm per year reference
Condition: Used (An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used.). System is In Good Physical Condition; Tested and in Working Condition.
Related Equipment: HP/Agilent 4062UX, HP4062UX, HP4062C, Keysight 3458A .
