Description
Model:HP/Agilent 8110A
SN:DE38705287
Category: Tester
Original Equipment Manufacturer: HEWLETT PACKARD ; Agilent

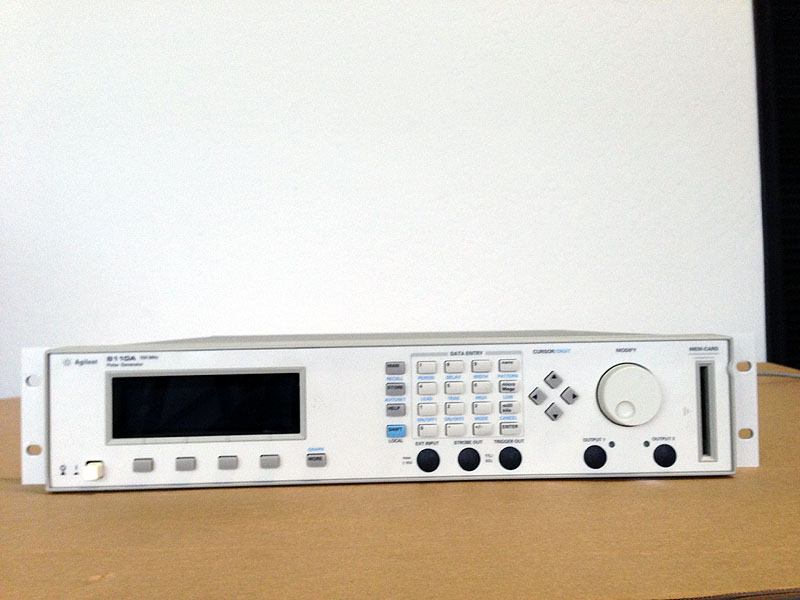

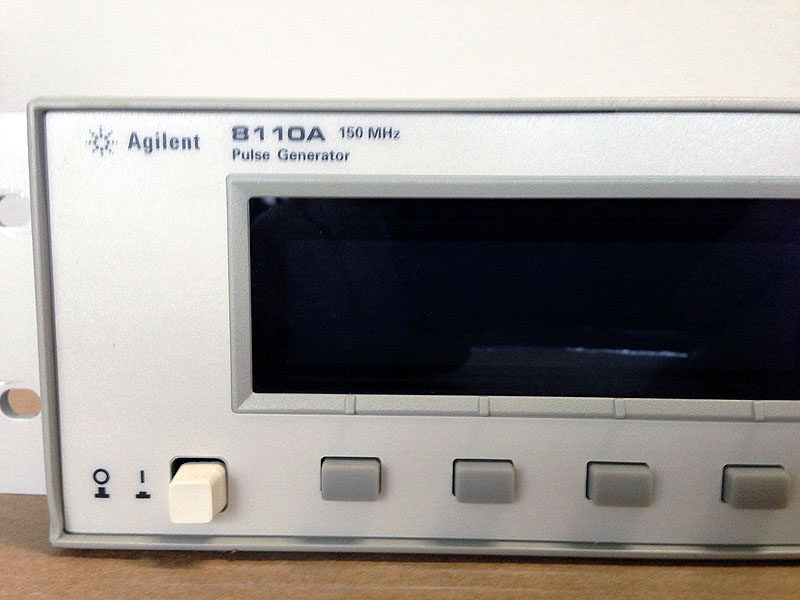

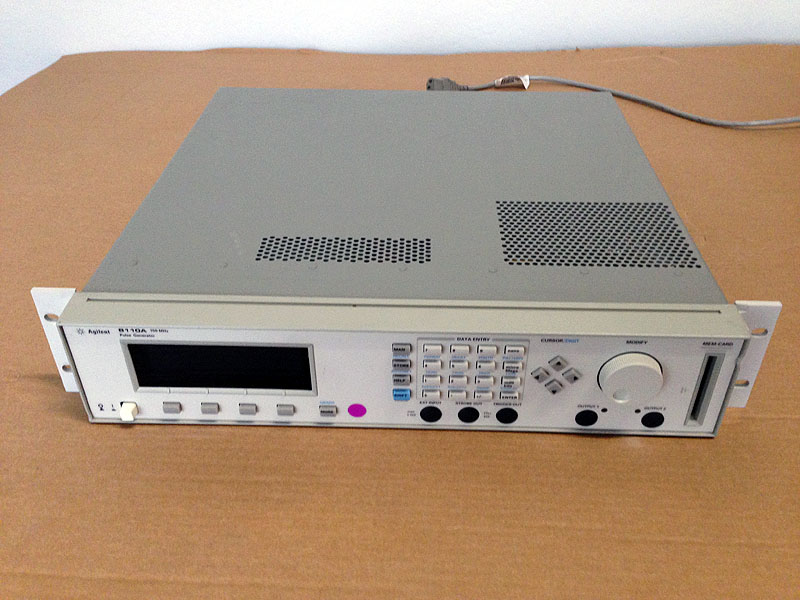

The HP/Agilent 8110A 150 MHz Pulse Generator is a test instrument that provides sufficient speed and performance for testing designs to their limits; testing under real world conditions to verify the proper function of the design.
- pulses, digital patterns and multilevel waveforms for testing current logic technologies (CMOS, TTL, LVDS, ECL, etc.)
- credible measurements
- easy set-up and operation
- upgrade capability
Flexible pulses or patterns for digital designs
Key Features
- 150 MHz Timing
- 2 ns Variable Transitions
- 10 Vpp (20 Vpp) into 50 Ohm
- 10 ps Resolution
- 0.1% Frequency Accuracy
- 4 kbit Pattern per Channel
- 3 and 4 Level Signals
- 1 or 2 Output Channels
- SCPI Programming Commands
- Small Size

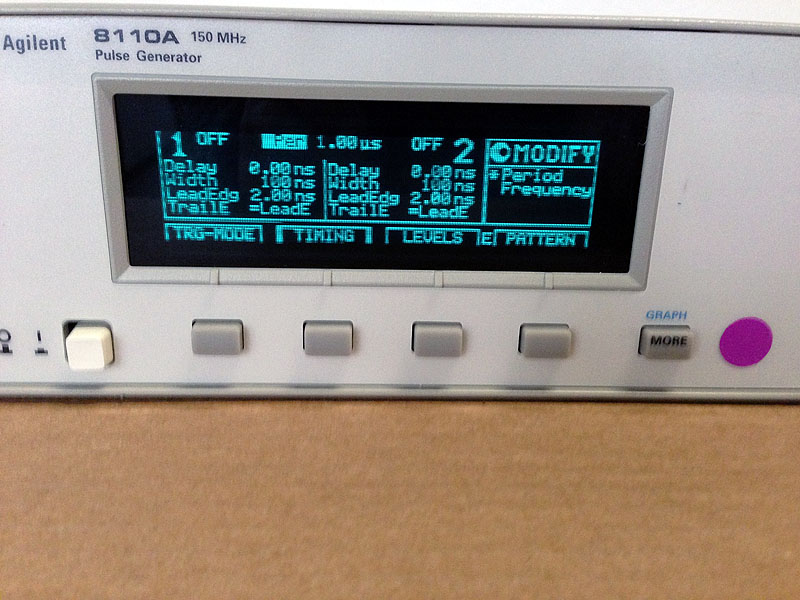

- Graphic Display
Configuration:
HP/Agilent 8110A Main Frame w/ 1Hz to 150MHz range

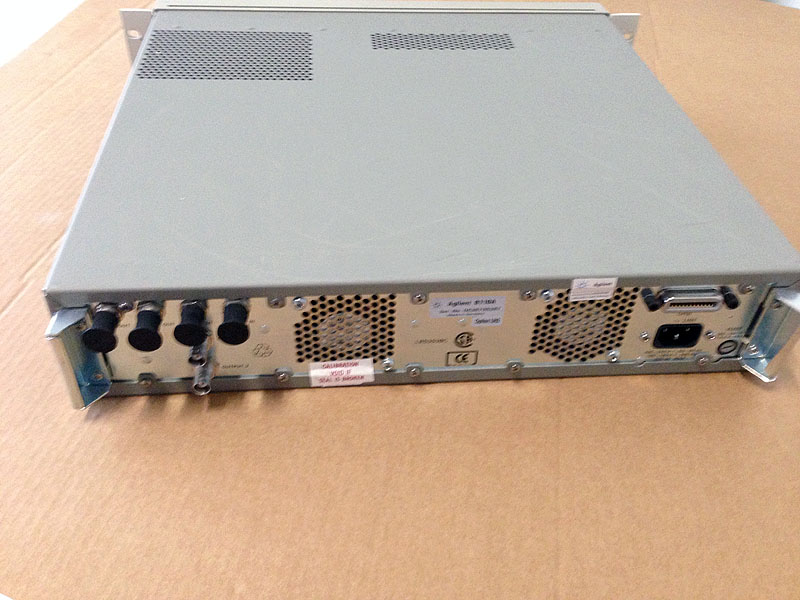

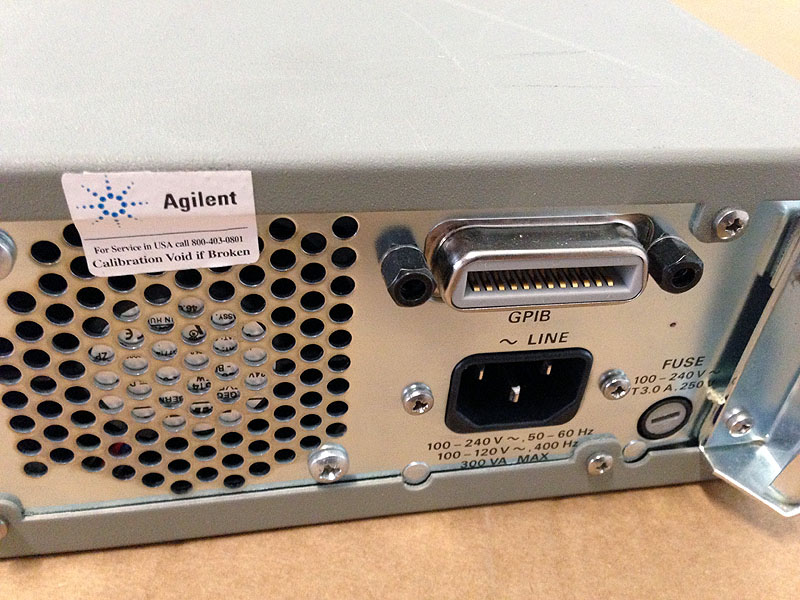

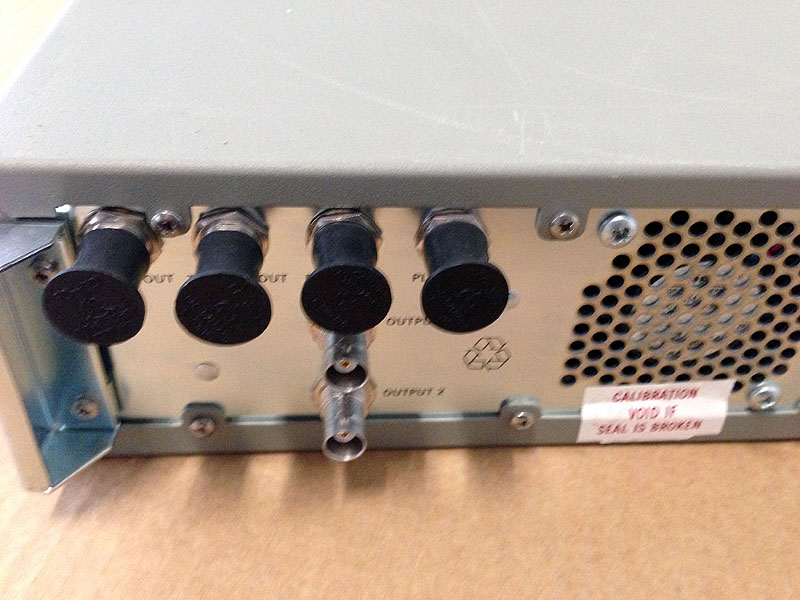

w/ Option UN2: Real Panel Connectors
Double output modules 81103A.

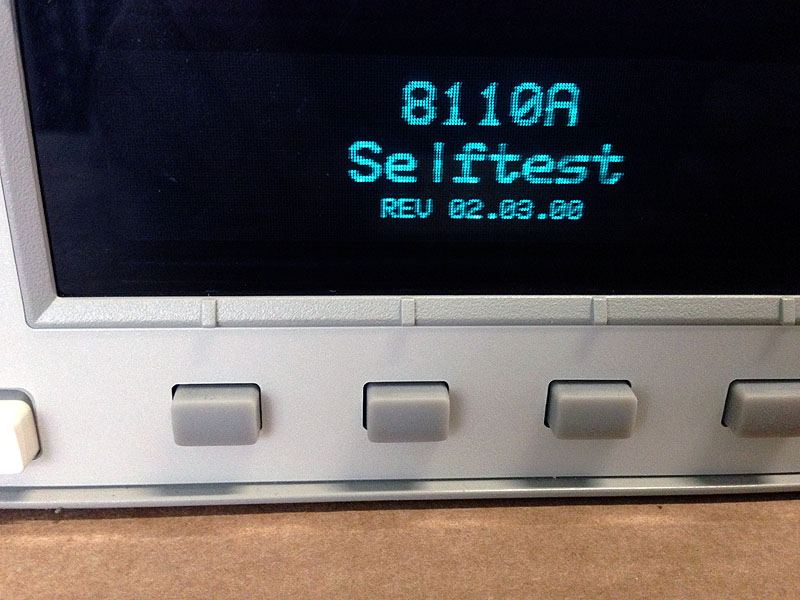

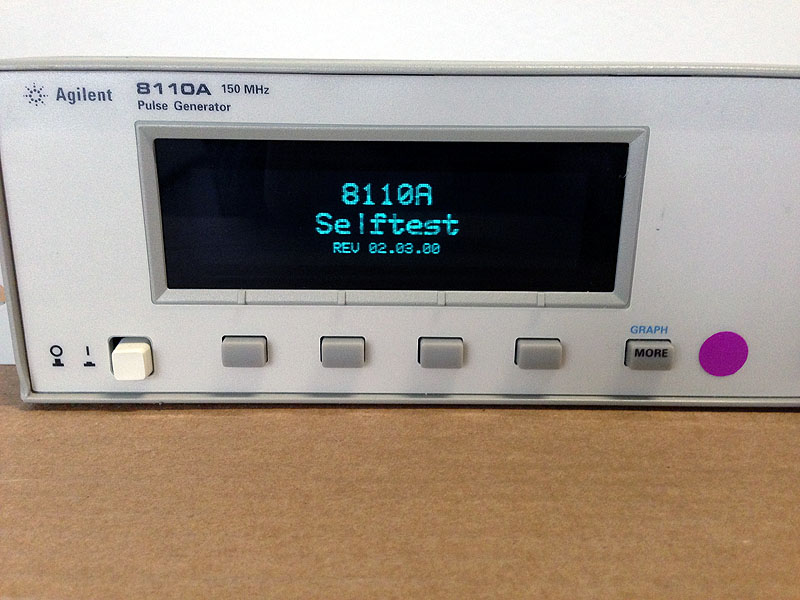

Condition: Used (An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used.). System is In Good Physical Condition; Tested and in Working Condition.
Related Equipment: HP/Agilent 4062UX, HP4062UX, HP4062C, Keysight 3458A .
