Description

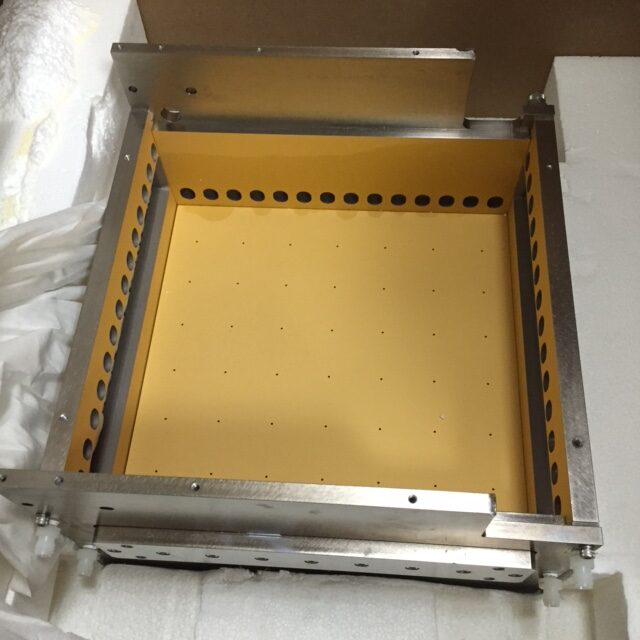

Parts Description: Rev: E Oven Assembly, 4108,8108, 8800 Standard
Part Number: 7100-1885-01 (7100-4078-03 , 7100-4078-03E without top plate)
Quantity in stock: 4 sets
Including:
| Item # | AG Part No. | Component Description | Manufacturer P/N | Manufacturer |
| AG Associates | ||||
| 2 | 7100-2283-03 | Bottom Plate Assemb | 7100-2283-03 | AG Associates |
| 3 | 7310-0485-02 | End Plate, Oven, Gold P ated | 7310-0485-02 | AG Associates |
| 4 | 7310-0486-01 | Side Plate, Oven, Gold, Le t | 7310-0486-01 | AG Associates |
| 5 | 7310-0484-01 | Side Plate, Oven, Gold, Righ | 7310-0484-01 | AG Associates |
| 6 | 7310-0487-02 | Water Manifold, Side Plate | 7310-0487-02 | AG Associates |
| 7 | 7310-0527-01 | Tube A, Bellows Connection | 7310-0527-01 | AG Associates |
| 8 | 7310-0528-01 | Tube B, Bellows Connection | 7310-0528-01 | AG Associates |
| 9 | 7310-4369-01 | Tube C, Bellows Connection | 7310-4369-01 | AG Associates |
| 10 | 2522-1015-01 | Adapter, Tube, 1/4T x 1/16NPT, Nylon | NY-400-1-1SS | Swagelok Co. |
| 11 | 7200-0609-01 | Socket Shim | 7200-0609-01 | AG Associates |
| 12 | 2109-0050 | Lampholder, Tungsten-Halogen, 10A, 600V | 26-07 | Leecraft Manufacturing |
| 13 | 2451-0013-01 | Lamp, Tungsten-Halogen, 1500 Watt | QIR-1502 | Ushio America, Inc. |
| 14 | 2451-0015-01 | Lamp, Tungsten,Halogen, 2000 Watt | QIR208-2000AGSI | Ushio America, Inc. |
| 15 | 1612-0040 | Silicone Heatsink Compound | 10-8109 | GC Electronics |
| 16 | 2806-0417-12 | Screw, SST, Socket Head, 10-32 x .75 | – – – – – | – – – – – |
| 17 | 2806-0417-06 | Screw, SST, Socket Head, 10-32 x .38 | – – – – – | – – – – – |
| 18 | 2806-0417-14 | Screw, SST, Socket Head, 10-32 x .88 | – – – – – | – – – – – |
| 19 | 2806-0408-06 | Screw, SST, Socket Head, 4-40 x .38 | – – – – – | – – – – – |
| 20 | 1612-0120 | Locquic Primer T | 22477 | Loctite Corporation |
| 21 | 1612-0110 | Sealant, Hydraulic (Loctite) | 56931 | Loctite Corporation |
| 22 | 7310-0744-01 | Pin, Locating | 7310-0744-01 | AG Associates |
| 23 | 5300-0091-01 | Thermostat, Manual Reset, 150 F Open | Type 36T X26 | Thermo-Disc |
| 24 | 7310-4655-01 | Nipple, 1/4 NPT Male x 2 Long, Nylon | 7310-0818-01 | AG Associates |
| 25 | 2522-0846-01 | Connector, Female, 1/4T x 1/4 P-NPT, Nylon | SST-400-7-4 | Swagelok Co. |
| 26 | 2522-0212-01 | Nipple, Hex, Male, 1/8P | SST-2-HN | Cajon |
| 27 | 2522-0839-01 | Connector, Female, 3/8T x 1/8 P-NPT | SST-600-7-2 | Swagelok Co. |
| 28 | 2522-1015-02 | Adapter, Tube, 1/4T x 1/4NPT, Nylon | SS-400-1-4SS | Swagelok Co. |
| 29 | 2805-0923-04 | Set Screw, Nylon, Cup Point, 5/16-24 x .25 | – – – – – | – – – – – |
| 30 | 2806-0408-04 | Screw, SST, Socket Head, 4-40 x .25 | – – – – – | – – – – – |
Related Equipment: AG Associates Heatpulse 8108
Wafer Size: 3 TO 8 INCH
Condition: NEW, NEVER USED
Shipping: Buyer
Payment: Wire. Please contact us for bank information by email.
Lead Time: 1 week after payment.
Valid Time: Subject to prior sale without notice
Warranty: 12 MONTHS
Refund: 30 DAYS
PRICE: CONTACT US PLEASE
Shipping: Customer is responsible for shipping. Please send us your UPS or FeDex account number by filling in the following form. We will arrange the shipping with buyer’s account after payment clear.
Sales Tax(Only for buyers from California, U.S.A.): We will charge the sales tax separately for end users in California, USA. Please send us resale certification by email (sales@semistarcorp.com) if you want to waive sales tax
