Main Maker

Oxford Plasmalab 300 RIE

Oxford Plasmalab 300 RIE Reactive Ion Etch System, Refurbished system, Morgan Hill, CA USA,Valid Time: Subject to prior sale without notice,Lead Time:12W

Perkin-Elmer 4400, Perkin-Elmer 4410, Perkin-Elmer 4450,Perkin-Elmer 4480, Perkin-Elmer 2400, Perkin Elmer 4400, Perkin Elmer 4410, Perkin Elmer 4450,Perkin Elmer 4480, Perkin Elmer 2400, Sputter, Magnetron Sputter, Diode Sputter, DC Sputter, RF Sputter, DC Magnetron Sputter, RF Magnetron Sputter, Co-sputter, Reactive Sputter, MRC, MRC 603, MRC 903, MRC 602, MRC 902, MRC 604, MRC 904, MRC 924, Plasma Etch, Dry Clean, Bias Function, Cathode, Load lock, Degas, Semiconductor Equipment, Used Semiconductor Equipment, Semiconductor Process Equipment,, Thin Film, Metal Thin Film, Thin Film Deposition, PVD, Physical Vapor Deposition

Category:

Description

SOLD OUT

Model Oxford Plasmalab 300 RIE

Category:  RIE

Original Equipment Manufacturer: Oxford

Condition:Refurbished

Price: Please contact us.

Valid Time: Subject to prior sale without notice

Lead Time: 8-12 weeks depending on PO time

Location: U.S.A.

Warranty: 7 months

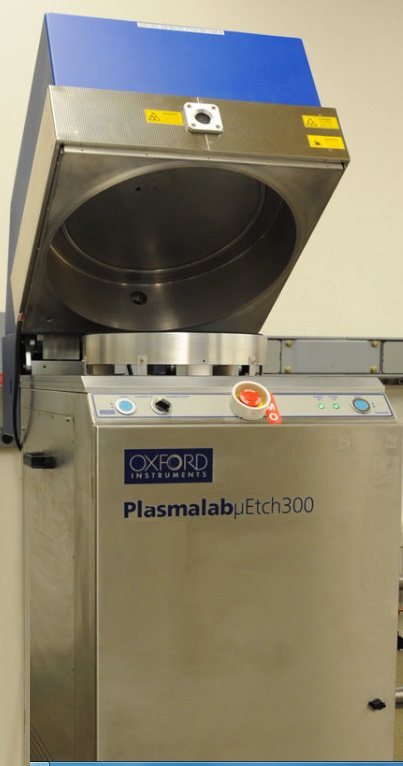

OXFORD PLASMALAB 300 RIE / PE ETCHER SYSTEM consisting of:

– Model: 300 RIE / PE (Reactive Ion Etch/Physical Etch)

– Up to 12″/300mm Wafer Capable
– Setup to etch SiO2, Nitrides, or Polymers
– Platen: 380mm diameter
– Adixen ATH 400HPC Turbo Pump
– HP Computer with Pentium Dual Core Processor
– Advanced Energy RFG 1251 RF generator (13.56MHz)
– Plasma mode: RIE/PE recipe controlled
– Wafer stage temperature control: Neslab RTE-7 chiller
– Gas Box: 6 gas Lines
– Gas Box with 6 MKS 1179A MFC”s installed
– MFC 1 Gas: CHF3, Range: 100 SCCM
– MFC 2 Gas: CF4, Range: 100 SCCM
– MFC 3 Gas: O2, Range: 50 SCCM
– MFC 4 Gas: AR, Range: 100 SCCM
– MFC 5 Gas: N2, Range: 100 SCCM
– MFC 6 Gas:C4F8, Range: 100 SCCM

 -Chamber heating jacket 20-80C manual control
 -300mm Graphite Wafer Holder
 -Alcatel 2033C corrosive roughing pump
– CE Marked
– EMO Button
– Chamber Up/Down Selector Switch
– Hoist Up/Down Buttons
– Operations Manuals & System Restore Disk
– Serial Number: 94-219912
– System Power: 208V, 3ph, 50/60Hz, 20A
